Application of Conductive Slip Rings (Through-Hole Slip Rings) in Winches
1.Introduction to Winches and Conductive Slip Rings

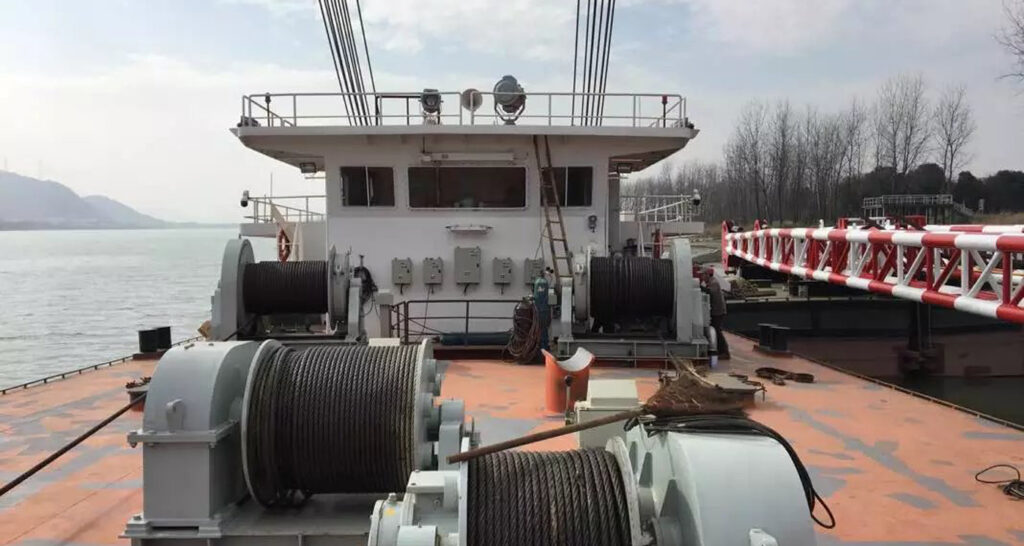

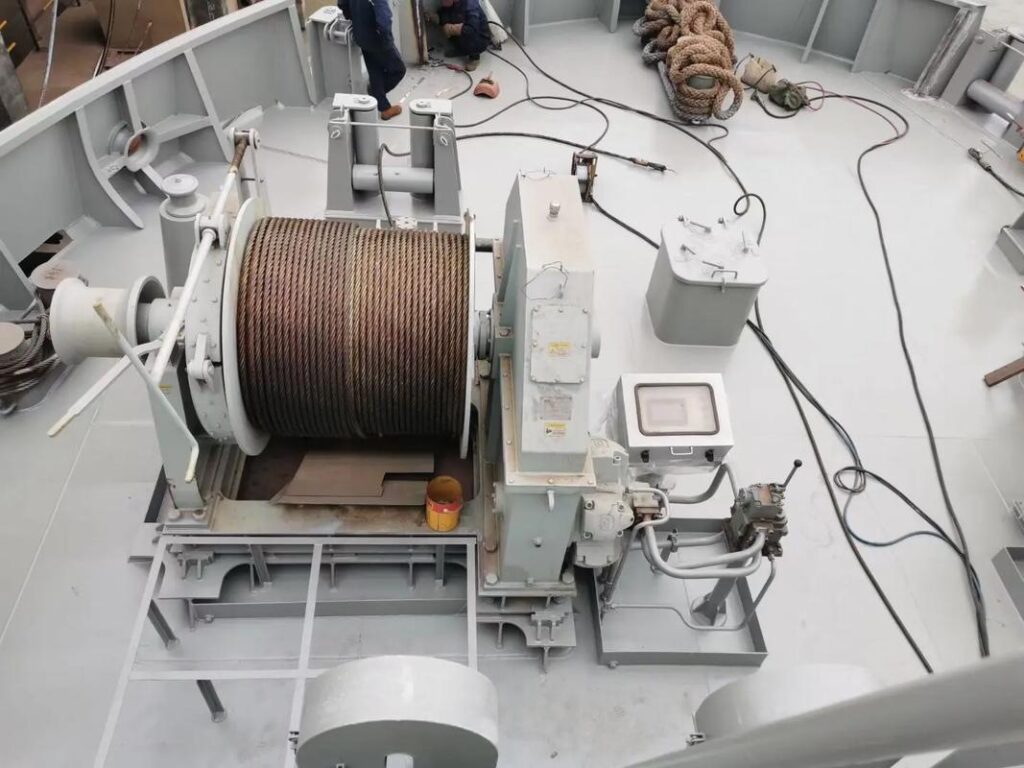

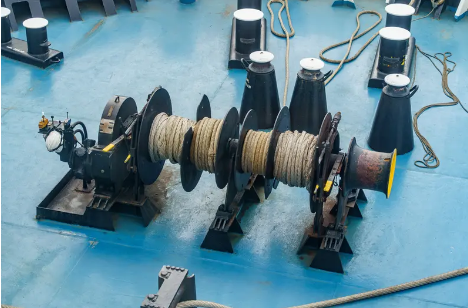

Winches (also known as stranding machines in some cases) are key equipment in the wire and cable manufacturing industry. They are used to twist multiple single wires into a unified strand, and can be applied to the production of various wires such as copper wires, copper-clad steel wires, power cords, telephone lines, and network cables. A key component ensuring the smooth operation of winches during rotation is the conductive slip ring, especially the through-hole slip ring.
Conductive slip rings are electrical components installed on the rotating shaft of winches. The through-hole design is widely adopted, with a central through-hole for installation. Their main function is to realize the uninterrupted transmission of power and signals when the winch is rotating. There are two main types of slip rings used in winches: precision type and carbon brush type. The choice between them depends on factors such as the rotation speed of the machine, current requirements, and cost-effectiveness.
2. Working Principle of Through-Hole Slip Rings in Winches
The through-hole slip ring consists of a stationary part (stator) and a rotating part (rotor). The rotor is connected to the rotating shaft of the winch, and the stator remains fixed. Electrical contacts, usually made of precious metals to ensure good conductivity and wear resistance, are distributed between the stator and the rotor. When the shaft of the winch rotates, these contacts maintain a stable electrical connection.
This connection provides a continuous power transmission channel for the rotating components of the winch (such as the motor that drives the rotation of the wire reel). At the same time, it can also transmit control signals and monitoring signals. For example, tension control signals and speed monitoring signals can be sent and received through the slip ring to ensure that the winch operates according to the desired parameters.
3.Application Advantages in Winches
3.1 Power Transmission

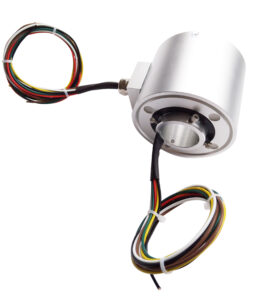

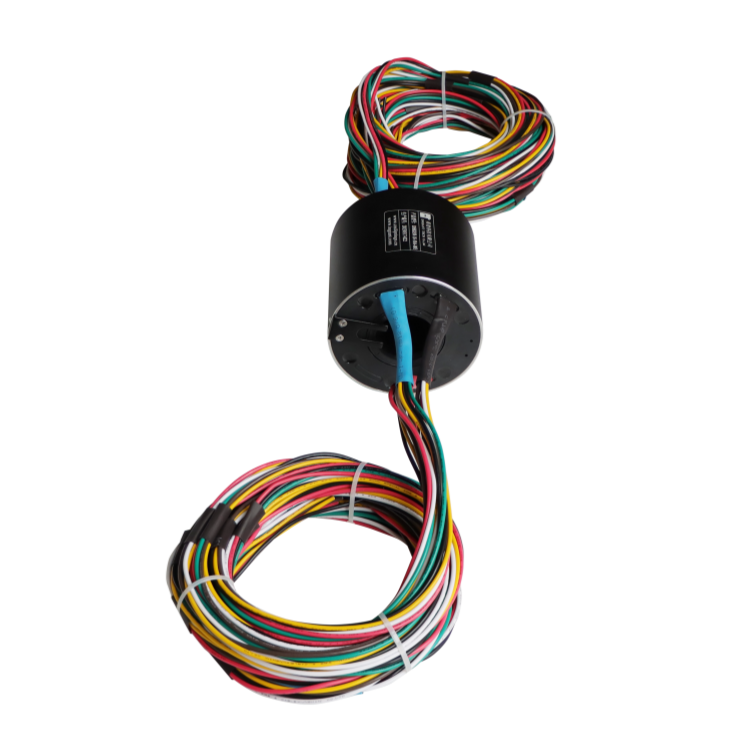

In winches, a stable power supply is crucial for the operation of various electrical components. Through-hole slip rings provide a reliable channel for power transmission. Take the DHK038-6-10A product as an example. It has 6 circuits, with a rated current of 10A per circuit, and can operate at a rotation speed of 0-300 rpm. This ensures that the motors and other electrical equipment in the rotating part of the winch can receive a continuous and stable power supply, enabling the machine to maintain a consistent stranding speed and tension.
3.2 Signal Transmission
Modern winches require precise control and monitoring. Through-hole slip rings play a vital role in signal transmission. They can transmit control signals from the fixed control system to the rotating components, such as signals for adjusting the stranding pitch and tension. At the same time, they can also transmit feedback signals from sensors (such as speed sensors and tension sensors) on the rotating part back to the control system. This two-way signal transmission allows real-time adjustment and monitoring of the stranding process, improving the precision and stability of the stranding operation.
3.3 Adaptability to Machine Structure
The through-hole structure of the slip ring is highly adaptable to the structure of winches. The central through-hole can accommodate the passage of wire cores or other mechanical components, which is consistent with the overall layout of the wire feeding and stranding mechanism of the winch. This design not only saves space but also reduces interference between the slip ring and other parts of the machine, making the installation, maintenance, and replacement of the slip ring more convenient.
4.Selection of Slip Ring Types in Winches
As mentioned earlier, there are precision slip rings and carbon brush slip rings for winches. Precision slip rings usually have higher precision in signal transmission and are more suitable for applications with high requirements for signal integrity, such as some high-speed and high-precision stranding processes. On the other hand, carbon brush slip rings may have advantages in terms of cost and current-carrying capacity in some cases.
Sometimes, a single winch may use both types of slip rings to meet different functional requirements. For example, precision slip rings can be used for high-precision signal transmission, while carbon brush slip rings can be used for power transmission with relatively large currents. The final selection depends on a comprehensive consideration of the machine speed (such as the maximum rotation speed of the DHK038-6-10A slip ring is 0-300 rpm), current size (the rated current of each circuit of the above model is 10A), and cost-effectiveness.
5.Conclusion
In conclusion, through-hole conductive slip rings ensure the stable transmission of power and signals during the rotation of the winch, which is crucial for the normal operation and high-quality production of the winch.
As a professional provider of slip ring and rotary joint solutions, Jiujiang Ingiant Technology Co., Ltd, founded in December 2014, has been committed to the R&D, production, testing, and sales of slip rings and rotary joints. It is located in Jiujiang National Economic and Technological Development Zone, with more than 6,000 square meters of scientific research and production space and a professional team of more than 150 staff. It has obtained 58 technical patents related to slip rings and rotary joints (including 12 invention patents). Our products (taking the DHK038-6-10A product as an example) can be widely adapted to winches and other scenarios requiring rotating conduction, stably transmitting power, signals, data, etc., and strictly follow quality inspection standards including military standards, solving various rotating conduction technical problems for the automation industry.
If you need slip ring selection, adaptation, or technical support for your winch, please contact us!
