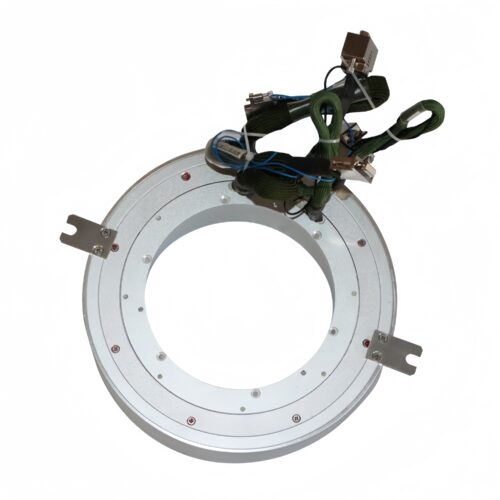

DHK067-32 Ingiant Customized through hole 67mm 2 channels 100M Ethernet slip ring

Ethernet slip ring through hole slip ring DHK067-32 series

DHK067-32 series has a through hole of 67mm, suitable for rotational applications with a through hole ≤67mm. The standard model supports 1-18 power rings (0-20A/ring) or 1-72 signal rings (0~5A/ring), combined with 2 channels of 100M Ethernet signals.

Features

Multi-point brush contact material ensures long life
Stable transmission of 2 channels of 100M Ethernet signals
Integrated structural design, easy to install
Standard and customized models available
IP51 (can be customized IP54-IP68)
Equipped with RJ45 male interface, RJ45 female interface is optional
Ethernet cable connection
It has the advantages of reliable transmission, no packet loss, no cross-coding, low return loss, and low insertion loss.
Free maintenance

Typical applications

Automatic machines
Cable drum
Robots, rotation sensors, emergency lighting equipment
Exhibition/display equipment
Rotary table
Medical and pharmaceutical equipment
Capping machine
Labeling Machine
Filling Machine
Machine tool

Category: Hybrid Slip Rings Ethernet+Electric Tags: ethernet slip ring, Hybrid Slip Rings Ethernet+Electric

Description

DHK067-32
The main parameters
Number of circuits	32	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

Standard product outline drawing:

Our Advantage

Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions.
Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
