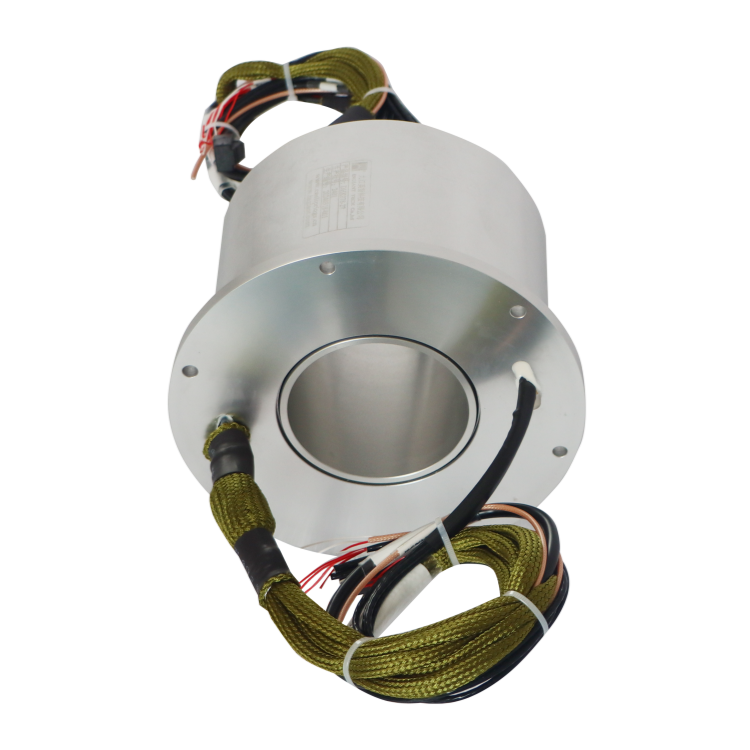

DHK078-27 Ingiant through hole Gigabit ethernet slip rings 1channel Gigabit Ethernet signal and 18 channels power
Ethernet slip ring – DHK078-27 series
Customizable, running 100/1000M Ethernet signal
DHK078-27 series are specially designed for 1000M base T signals, can transmit 1 channel Gigabit Ethernet signal combined with 18 power rings(2~20A), adopt fiber brushes material with the advantage of reliable transmitting, no packet loss, no string code, low return loss, low insertion loss. Available for custom design as per actual demand.
Feature
- Multi-point brush contact material ensure long life
- Stable transmit 1 channel Gigabit Ethernet signal
- Integrated structure design for easy installation
- Standard model and customization are available
- IP 51 (IP54-IP68 can be customized)
- With RJ45 male connectors, RJ45 female optional
- Ethernet cable connection
- With advantages of reliable transmitting, no packet loss, no string code, low return loss, low insertion loss, etc.
- Free maintenance
Gigabit ethernet slip rings can be used in wind turbines, industrial robots, and radar antennae which need rotary platforms.
|
DHK078-27 |
|||
|
Main Parameters |
|||
| Number of circuits | 27 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
- Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
- Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
