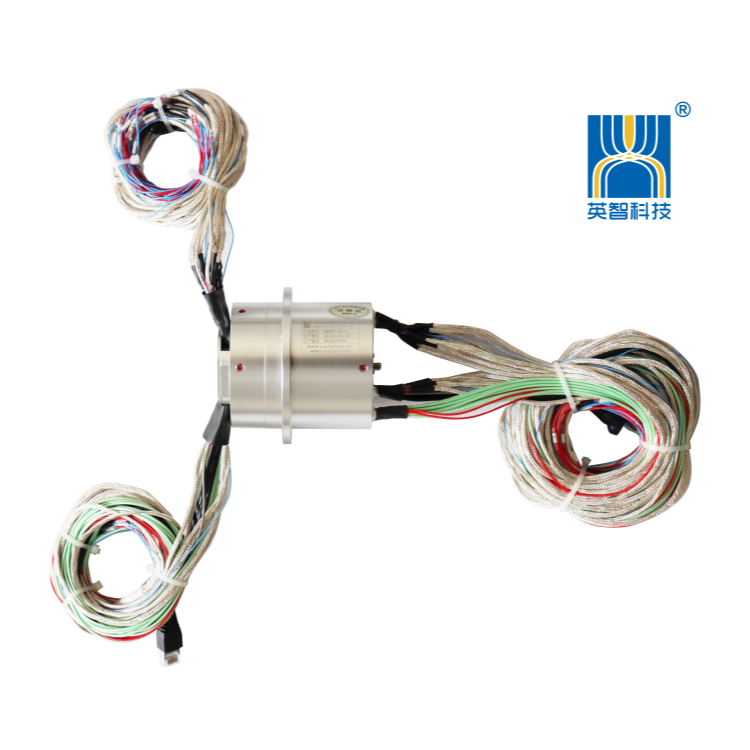

DHS075-60-1S solid shaft slip ring1channel RF rotary joint + electric combination slip ring
DHS075 series RF rotary joint + solid shaft slip ring flange installation
- 1channel RF rotary joint + electric combination slip ring
- RF slip ring is a product specially developed to meet the transmission of high-speed serial digital signals or analog signals. The maximum transmission rate can reach 40GHz.
- This series of products supports single-channel radio frequency signal transmission alone, and can also support mixed transmission of radio frequency signals and 24V control signals, communication signals, power supplies, and fluid media.
- The video signal uses a 75Ω characteristic impedance, and the high-frequency RF signal uses a 50Ω characteristic impedance RF coaxial structure head.
Typical applications:
RF slip rings are mainly used in situations where 360-degree continuous rotation requires guaranteed power supply and high-frequency waveguide signals cannot be interrupted: such as various military radars, shipborne satellite communication devices, vehicle-mounted satellite communication equipment, satellite vehicles, emergency disaster command vehicles, high-end Robots, rotating turrets on vehicles, remote control systems, radar antennas, medical systems, video surveillance systems, undersea operating systems for national or international security systems, emergency lighting equipment, robots, exhibition/display equipment, etc.;
|
DHS075-60-1S |
|||
|
The main parameters |
|||
| Number of circuits | 60 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Product drawing:
Our advantage:
- Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
- Company advantage: Ingiant provides various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. As a high-end conductive slip ring manufacturer, the company not only provides high-quality standard products, but also relies on our technical advantages, focusing on providing high quality products to meet customers high requirements.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
