DHS060-21-1S RF hybrid slip ring 1 channel RF + 21 channels power signal with diameter 60mm
1 channel RF + 21 channels power signal combination military vehicle radar RF hybrid slip ring
RF hybrid slip ring product features:
- -40℃～+85℃ temperature range;
- Automated production of key nodes, with extremely high reliability and consistency;
- Compact structure design, smooth operation and low torque;
- The surface of the ring is very smooth, with a surface roughness of <0.5μm, which avoids the phenomenon of brush filament flashing and early powder accumulation;
- Low electrical noise, no electromagnetic interference, low loss, military-grade service life up to 20 million revolutions @350RPM;
- Military grade adopts wear-resistant and corrosion-resistant three-level super-hard gold technology, and its hardness, strength, wear resistance and conductivity are better than the international military standards for connector contacts;
Mainly used in rotating transmission of power, signals, radio frequency signals, etc. in intelligent industry, satellite radar, communication on the move, and radar antennas.
Transmission signal:
A variety of media combination transmissions can be integrated.
|
DHS060-21-1S |
|||
|
The main parameters |
|||
| Number of circuits | 21 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

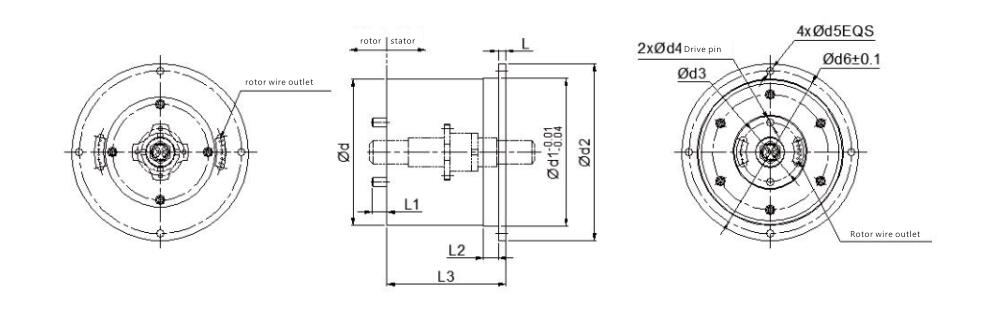

Standard product outline drawing:
