Ingiant precision through hole slip ring hole 102mm and 54 channels

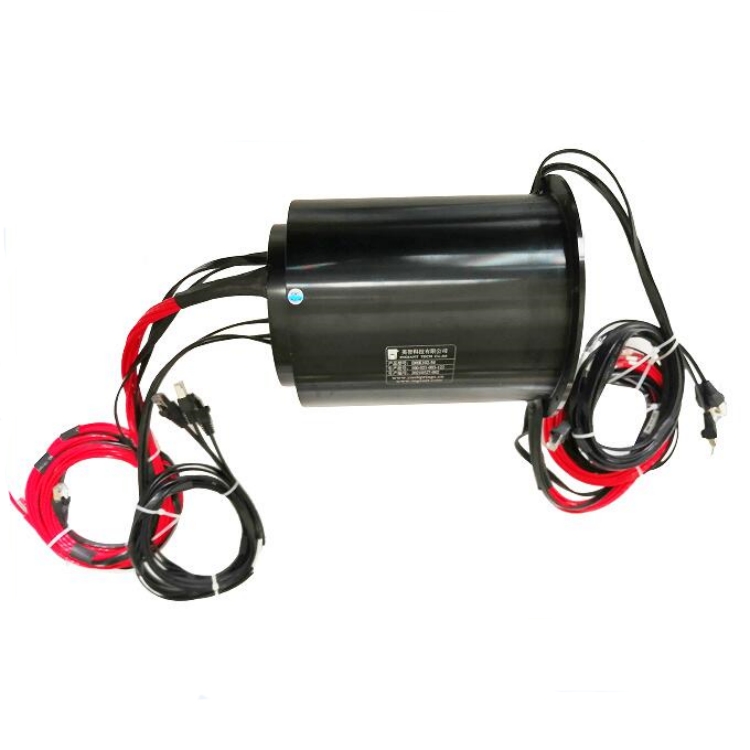

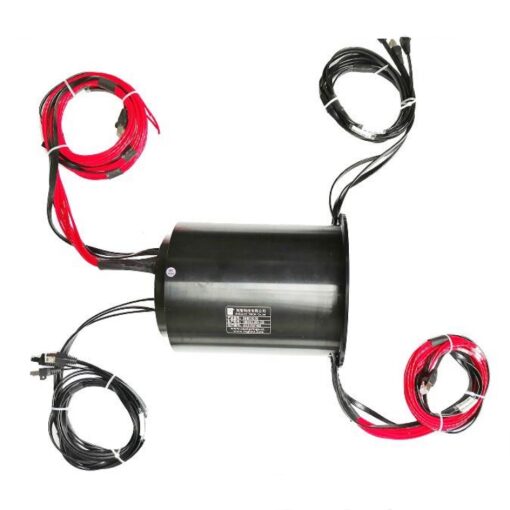

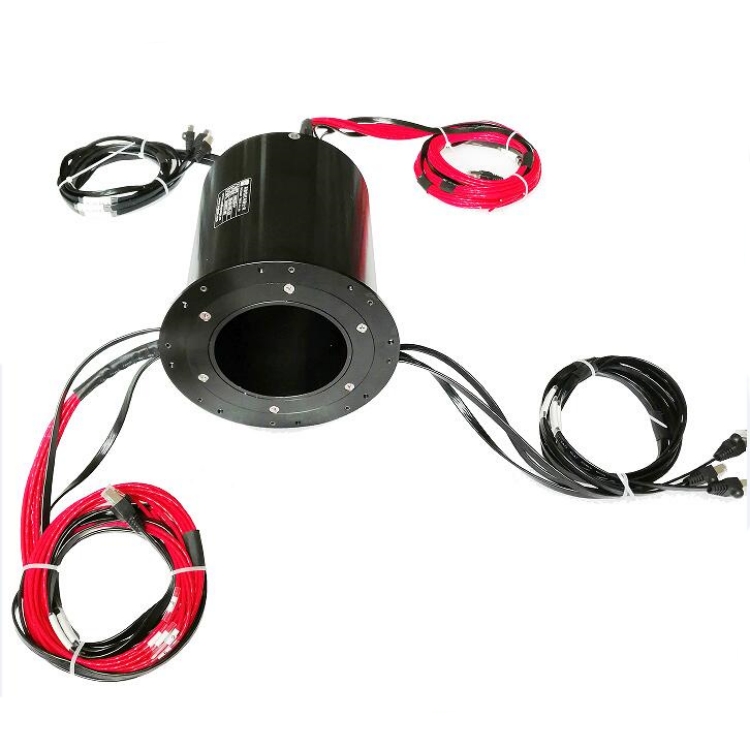

Through hole slip ring,hole size 102mm(suitable for shaft≤102mm), housing material can be use plastic, aluminum alloy or stainless,it is ingergal precision slip ring。
Features
- Advanced multi-point contact brush technology ensures reliable contact with low friction;
- Support 1~108 circuits power/signal,customized for more circuits or large current;
- Can be customized to combine power/signal transmitting
- Support transmitting power with signals ;
- Integrated structure design, easy installation
|
DHK102-54 |
|||
|
The main parameters |
|||
| Number of circuits | 54 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
|
Electrical Slip Ring Parameters |
|||
| Rings | 1-200 (or more) | Current | 2A,5A,10A,20A,25A |
| Rated Voltage | 0~600VDC/VAC | Max speed | 15000RPM |
| Housing Material | Aluminum Alloy, engineering plastic, stainless steel, etc | Torque | 0.02N.m;+0.01N.m/ 6rings |
| Working life | >80 million | Contact Material | Precious Material |
| Electrical Noise | <5mΩ | Contact resistance: | <5mΩ |
| Dielectric Strength | 2500VAC@50Hz | Lead Wire | UL Teflon@Awg22,Awg16 |
| Insulation Resistance | 1000 MΩ / 500VDC | Lead Length | 300mm (per required) |
| Working Temperature | -40℃~ 80℃ | Protection Grade | IP51 – IP68 |
| Operating Humidity | 10% to 95% RH | Material | RoHs |
Standard product outline drawing:
Our Advantage:
- Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
- Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
- Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
