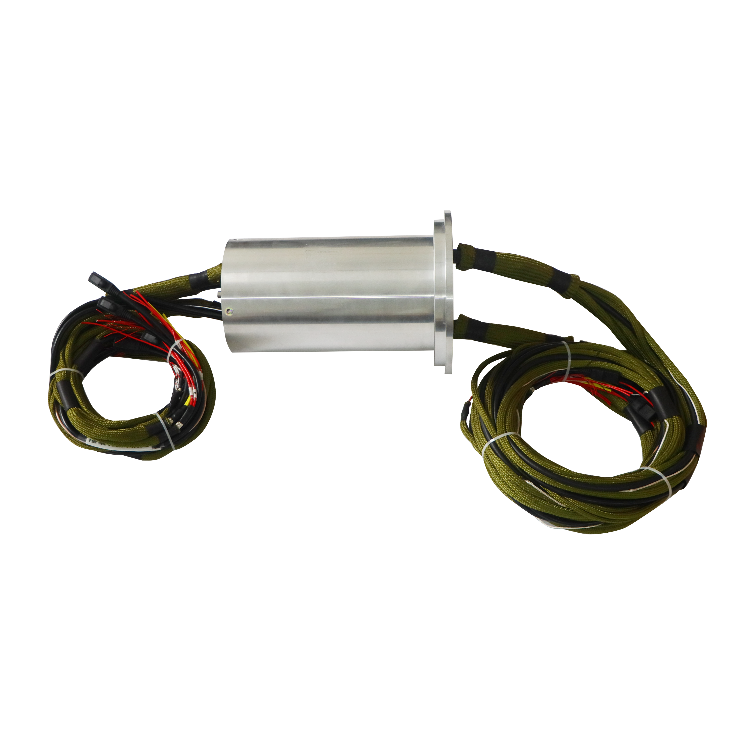

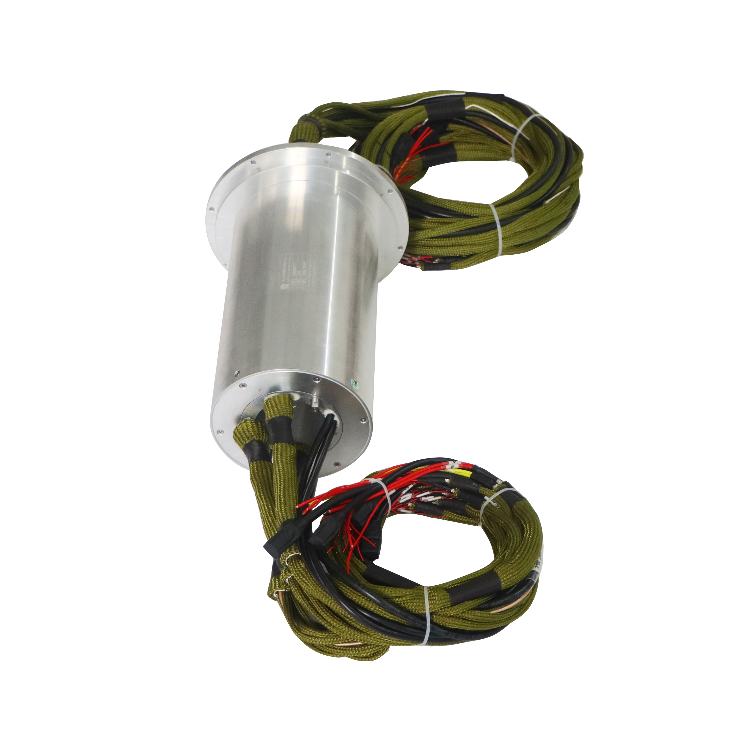

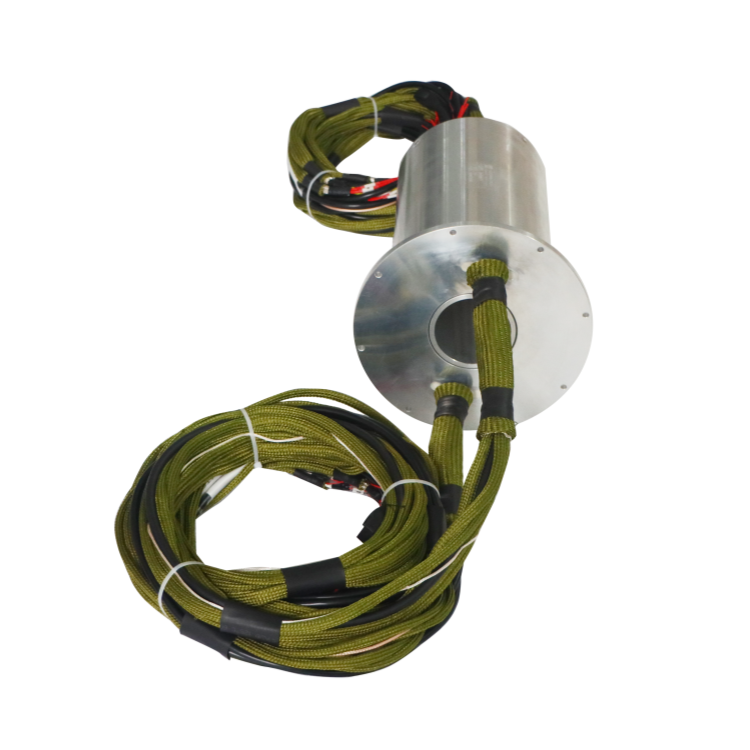

DHK060-75 Military quality 4-channel 100M Ethernet slip ring 60mm hollow shaft structure

DHK060-75 series 4-channel 100M Ethernet slip ring

4 sets of 100M network cables + 55 channels of power current/signal

DHK060-75 series of 100M Ethernet slip rings are integral precision conductive slip rings that can be rotated 360 degrees to transmit 4 channels of 100M Ethernet signals. The slip ring aperture is 60mm and can mix and transmit 55 channels of current/signal. It can mix USB, HDMI, etc. other signals. It has the advantages of stable transmission, no packet loss, no aliasing, small return loss, and small insertion loss.

Features

• Standard RJ45 connector, optional RJ45 female connector;
• Stable transmission of 4 channels of 100M Ethernet signals;
• Mainly able to transmit Ethernet (10M / 100M / 1000M BaseT);
• It can also work with current channels or gas-liquid rotary joints;
• Mixed transmission of 55 channels of power/current/signal;
• It has the advantages of stable transmission, no packet loss, no aliasing, small return loss, and small insertion loss;
