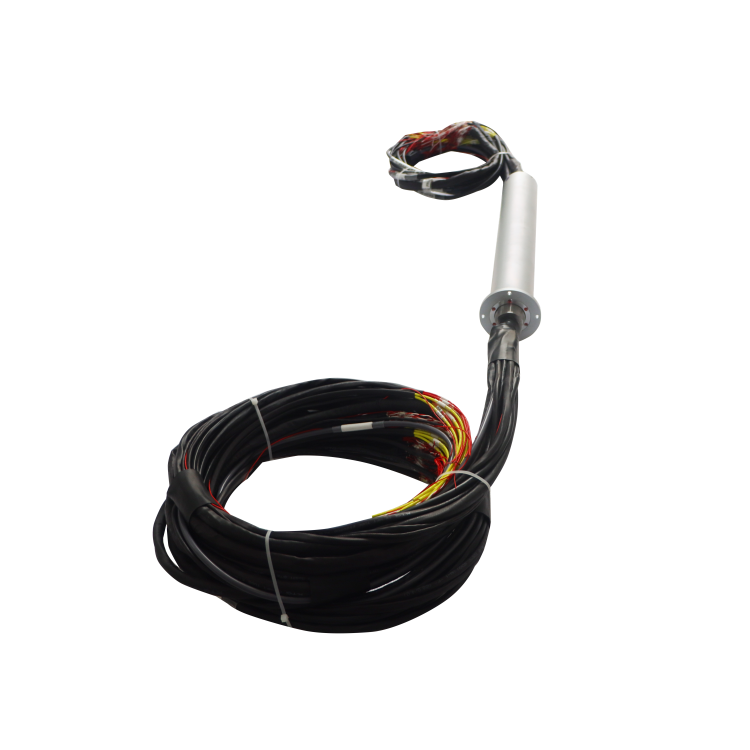

DHS057-149 Customized OD 57mm Ethernet slip ring 149 channels for box type turntable centrifuge

DHS057-149 series Ethernet slip ring is an industrial-grade Ethernet slip ring with an outer diameter of 57 mm and flange installation. It is a compact integral structure 1-channel 100M/1000M Ethernet integral precision conductive slip ring that can transmit power current, signals, etc. in a mixed manner! It has the advantages of stable transmission, no packet loss, no string code, small return loss, and small insertion loss. American military coating technology, precious metal + super-hard gold plating, ultra-low BER bit error rate and ultra-high signal-to-noise ratio.

Features

It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss
The brush-bundle contact structure ensures product life
Stable transmission of 1-2 Gigabit Ethernet signals
Integrated structure design, easy to install
Protection level IP51-IP68 optional
Standard models are available and can be customized
RJ45 male and female connectors are optional
Use high-quality Ethernet cable
Maintenance-free

Category: Hybrid Slip Rings Ethernet+Electric Tag: ethernet slip ring

Description

DHS057-149
The main parameters
Number of circuits	149	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

Standard product outline drawing:

Our advantage:

Product advantage: Ethernet slip rings are made of reliable precious metal materials and aluminum shells. The mature and stable process makes the produced slip rings have the remarkable characteristics of stable transmission, no packet loss, anti-crosstalk, large return loss and small insertion loss.
Company advantage: Transmission technology for complex industrial and safety-relevant applications form the core of our product range. All products can be individually adapted to the applications in order to offer you added value. Premium engineering – that is our claim for every single product we manufacture. We would like to convince you of this.
Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.

DHS057-149 Customized OD 57mm Ethernet slip ring 149 channels for box type turntable centrifuge
