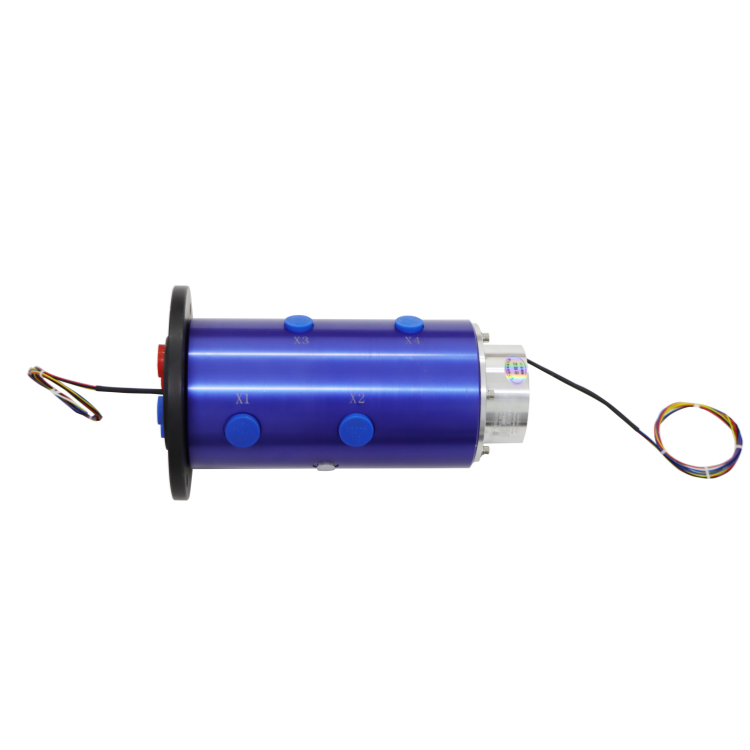

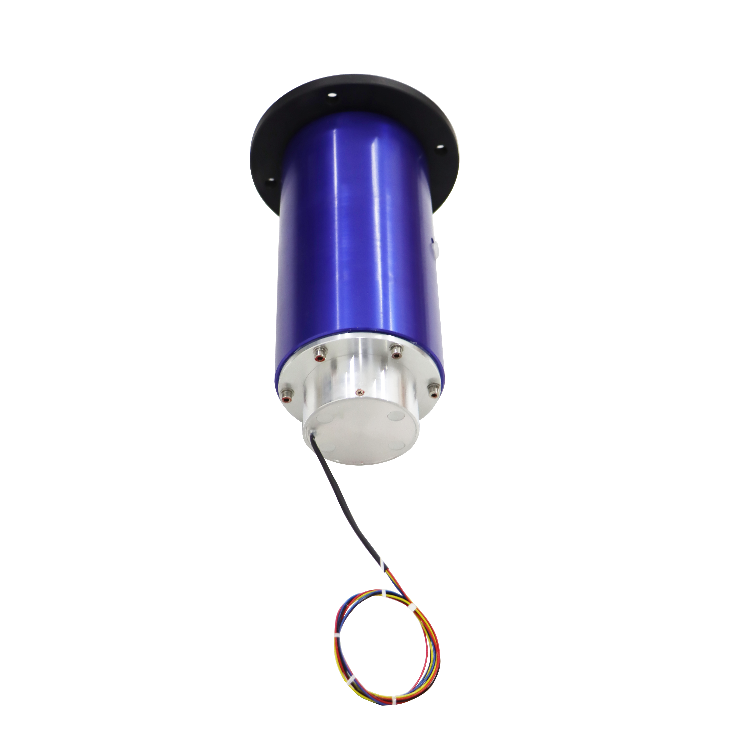

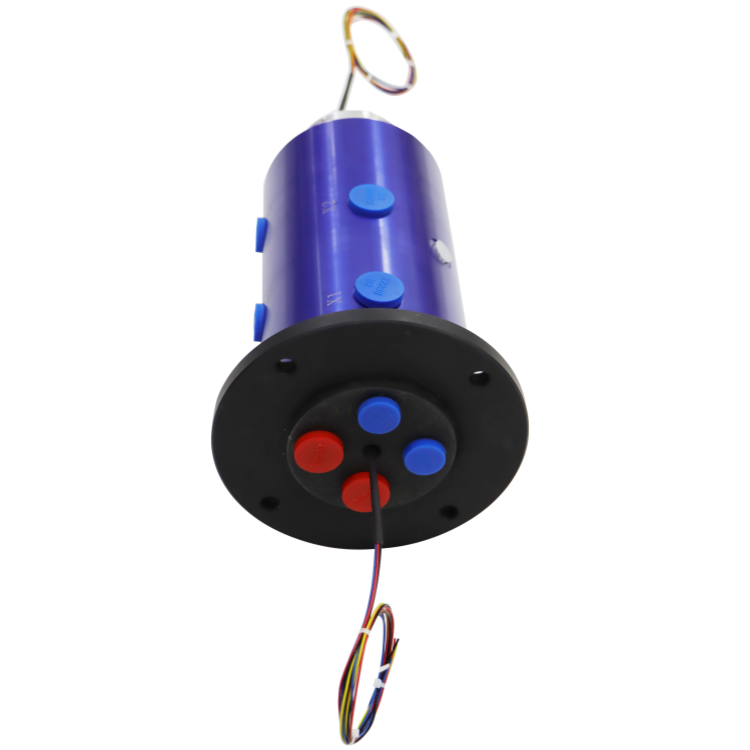

DHS070-4-2A-4Q Ingiant gas-electric hybrid slip ring combination 4 channels 2A and 4 pneumatic channel
- 4 in and 4 out, 4-way gas/gas-electric hybrid rotary joint, gas-electric hybrid slip ring, with G3/8″
- And it can optionally pass through power lines, signal lines, industrial buses, and control lines at the same time.
- Solenoid valve, induction line, etc.
- Standard is flange mounting type
- The media that can pass through are: compressed air, vacuum and other gases
Gas-electric hybrid slip ring is a high-end rotary joint that effectively integrates the functions of a conductive slip ring to transmit electricity, data, signals, Ethernet, and USB, and integrates the advantages of a pneumatic rotary joint to transmit gas, oil, and liquid. The one-piece design of the electric combined slip ring effectively integrates the circuit and the gas circuit into one, reducing the space for the equipment and realizing the simultaneous 360-degree infinite rotation transmission of power medium, fluid medium, and gas medium.
Typical applications:
Automated non-standard equipment, lithium battery equipment, mobile phone testing equipment, high-end mobile phone equipment, various laser equipment, coating machines, coating separator equipment, packaging film equipment for soft pack batteries, bonding equipment, laminating equipment, electronic semiconductors Industrial automation equipment; photoelectric flat panel display (LCD/LCM/TP/OLED/PDP) industrial automation equipment, testing equipment, other automated non-standard professional equipment, etc.
|
DHS070-4-2A-4Q |
|||
|
The main parameters |
|||
| Number of circuits | 4 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

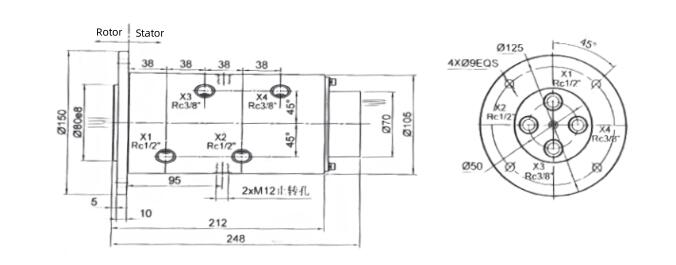

Product drawing:
Our advantage:
- Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Excellent after-sales and technical support service: Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
