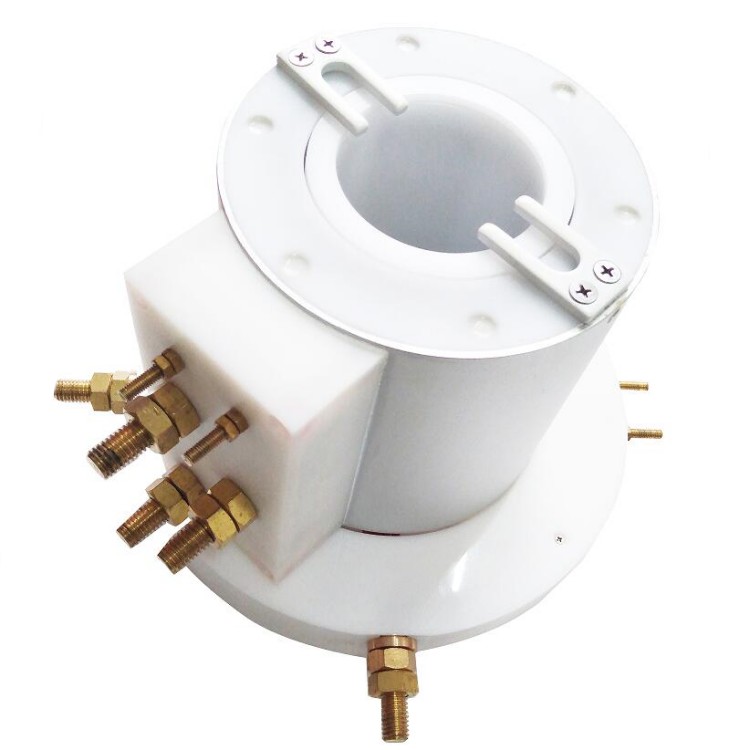

High current through hole slip ring 3 channels 200A,2 channels 10A.
High current through hole slip ring is designed to pass high-power and high-current, and the current can reach up to 7500A. It adopts contacts with extremely low contact resistance, and the calorific value is small. A large number of heat dissipation holes, each unit has a temperature rise test and a large current impact test before leaving the factory.
- Can pass 30A, 60A, 100A and even customized products up to 7500A
- ﾠSupport 500W, 1000W, 2000W and higher power devices.
- Gold-plated treatment. The contact resistance is extremely low and the heat generation is small.
- ﾠEach machine will do temperature rise test and high current impact test before leaving the factory.
- ﾠShaft mounting or flange mounting optional.
- Outlet or binding post optional
Can customize all kinds of high current through hole slip rings, high power slip rings, small wind power slip rings, etc.
|
DHK074-5-002 |
|||
|
The main parameters |
|||
| Number of circuits | 5 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard product outline drawing:
Our Advantage：
- Product advantage: DHK series perforated conductive slip ring is currently the most cost-effective industrial slip ring inside a best-selling series of products, in many cases also known as hollow shaft conductive slip ring, through the hole, through the hole conductive slip ring, hollow shaft slip ring. Mainly used in 360 degrees continuous rotation and need to ensure that the power supply, signal can not be interrupted.
- Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
- Excellent Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
