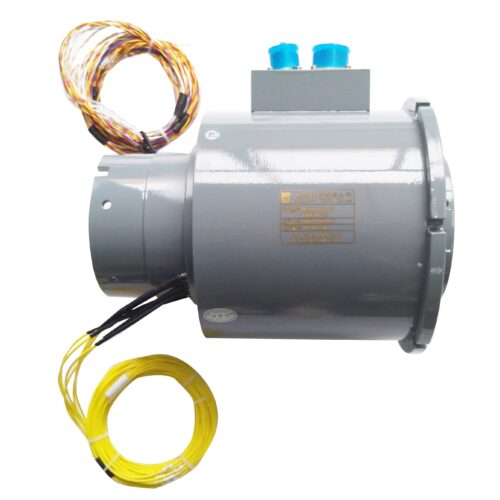

Through hole slip ring super long life 22 channels 5A

In the through-hole slip ring, the number of rings is a very important parameter, and it is also a decisive factor for the price of the slip ring. The number of rings in the through-hole series ranges from 1 to 200, and the price of different rings varies greatly. Therefore, in the manufacturing process, the larger the number of rings, the more complex the manufacturing process.

For insulation, sometimes it may be necessary to use newer materials. This is why slip rings with large rings and small volume are very expensive.

Through-hole slip rings have been widely used in new fields such as automation equipment, automation testing equipment, automation robots, and manipulators. Since the quantity of through-hole slip rings is not very large, many of them require custom processing and custom production, so the individual price is relatively high, unlike cap slip rings, each type has certain standard parts, and the unit price Relatively cheaper.

Categories: Customized slip ring, Through bore slip rings Tags: Hollow shaft slip ring, Through bore slip ring

Description

DHK105-22
The main parameters
Number of circuits	22	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

Standard product outline drawing:

through hole slip ring product outline drawing:

Our Advantage

Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
