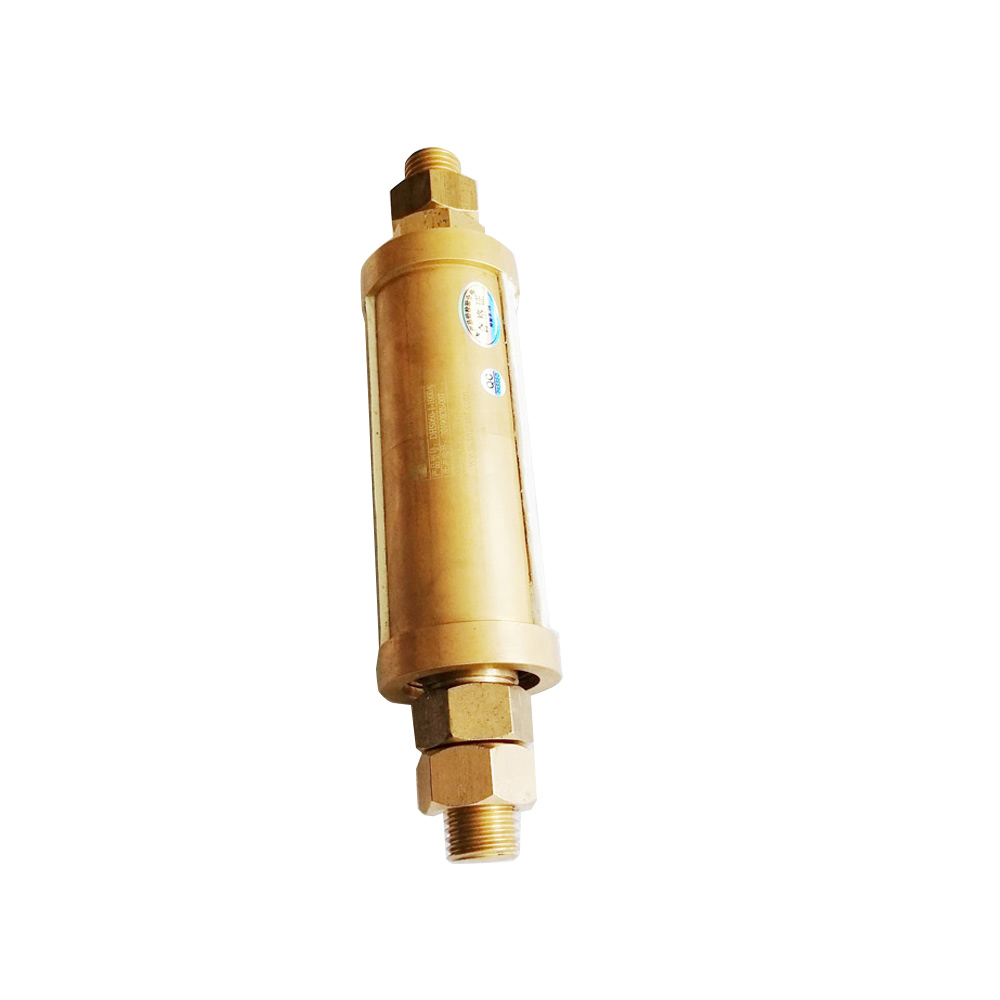

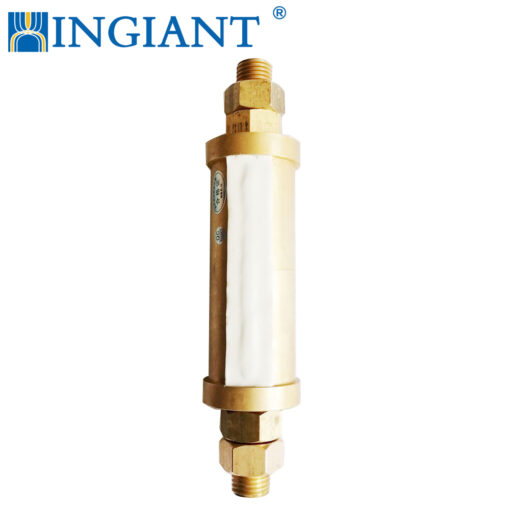

Brass material large current terminal slip ring 1000A

According to the needs of some customers with large current and super large current, Ingiant can design a terminal installation mode that meets the needs of customers.

For the slip ring of high current terminal, brass terminal studs of different sizes can be used according to the installation mode and current. This way of fixing the wiring with brass studs and brass nuts is very firm, and large pieces of brass can stably transmit high current.

The slip ring of the terminal can transmit 3000A current at most. If you have a greater current transmission demand, please inform us, and our engineers will provide you with the best solution!

Features of high current slip ring:

  • It can pass through 30A, 60A, 100A, or even customized 3000A products
  • Support 500W, 1000W, 2000W and higher power equipment
  • China military technology gold plating Extremely low contact resistance and low heating.
  • Temperature rise test and high current impact test will be conducted for each set before leaving the factory
  • Shaft mounting or flange mounting optional
  • Outgoing line or terminal optional

High current conductive slip ring customized options:

  1. number of channels;
  2. signal and power supply can be transmitted separately or mixed, can be combined with pneumatic or hydraulic;
  3. current and voltage;
  4. conductor length;
  5. connection terminal size and type;
  6. protection grade;
  7. outgoing line direction.

Typical applications of high current conductive slip ring:

  1. industrial machinery – machining center, turntable, lifting equipment tower, coil wheel, test equipment, packaging machinery, etc
  2. magnetic actuator, processing program control equipment, rotary table sensor, emergency lighting, robot, radar, etc
  3. manufacturing and control equipment.
