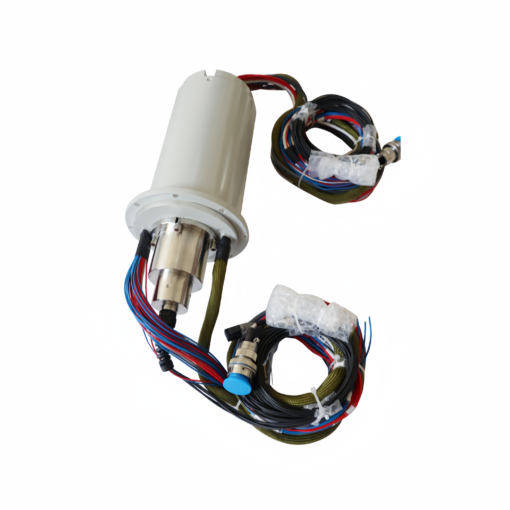

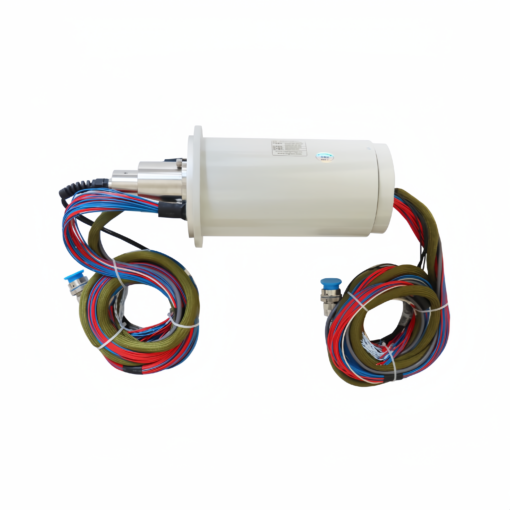

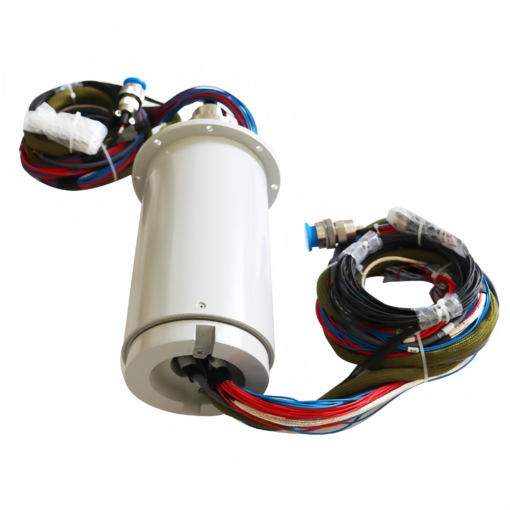

DHS130-56-5F high precision photoelectric slip ring combination 5 optical fibers and 56 electrical channels

DHS130 series 5-channel fiber optic/photoelectric slip ring

The DHS130 series of 5-input and 5-out photoelectric slip rings can transmit 5 optical fibers and 1 to 56 electrical channels at the same time. It is an integral precision conductive slip ring with an all-aluminum alloy structure. The electrical path supports signal (2A), 10A, 50A, voltage 600VAC/VDC.

Photoelectric slip rings are currently the most technically difficult series of industrial slip rings. They are mainly used in situations where 360-degree continuous rotation requires guaranteed power and fiber optic signals that cannot be interrupted.

Photoelectric slip rings use optical fibers as data transmission media, providing the best technical solution for data transmission between rotatingly connected system components. It is particularly suitable for applications that require unlimited, continuous or intermittent rotation, and at the same time need to transmit large-capacity data and signals from a fixed position to a rotating position. It can improve mechanical performance, simplify system operation, and avoid collisions due to the rotation of movable joints. Damage to fiber optics.
