Hybrid Slip Rings – 1channel Pneumatic+10channelsElectric
Advantages of the Miniature Hybrid Slip Ring
Miniature hybrid slip rings offer the following advantages:
- Low unit price
- Large constructive design possibilities
- High reliability
- Low weight
- Low installation space
- Easy installation
A rotating union that can pass gas pressure, liquid and electrical energy at the same time is a huge relief for designers. They practically only have to design up to the transfer points and can leave this critical point to a tested and proven series component. In addition, the hybrid design is space-saving. This makes it ideal for slewing rings where space is at a premium. Finally, the miniature design is also very low in mass. The low weight not only has energy-saving properties for vehicles and aircraft. It also has great advantages for dynamically exposed positions.
Robot arms equipped with these lightweight components at intermediate joints generate significantly lower impulse forces during acceleration and deceleration from rotational movements. This protects the entire structure and extends the service life of the bearings in your applicatio
|

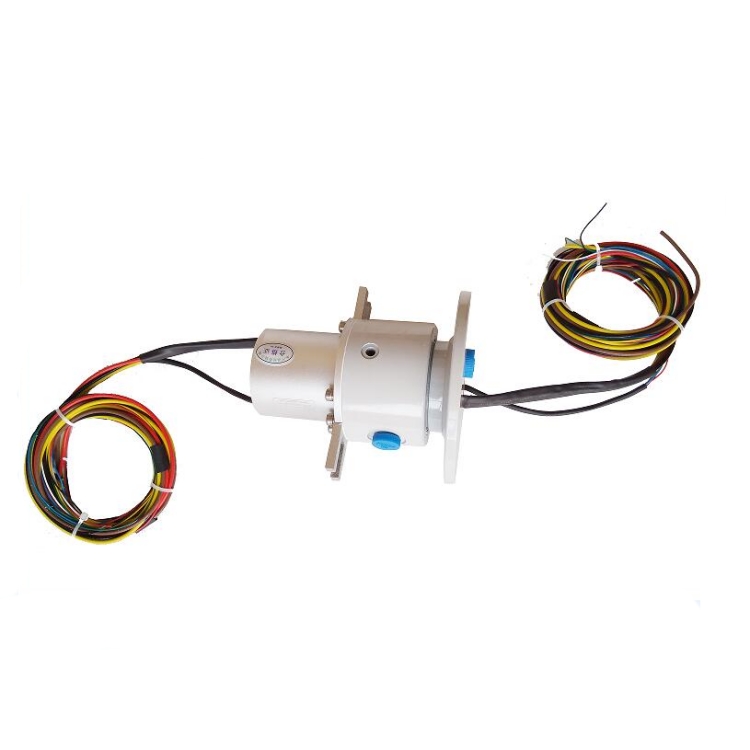

DHK012F-10-1Q |
|||
|
The main parameters |
|||
| Number of circuits | 6 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Product outline drawing:
Our Advantage
- Company advantage: 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent. Provide OEM and ODM service, over 20 years of industry-related industry experience.
- Product advantage : To ensure only the highest quality products, We’ll perform the tests in-house laboratory, High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance.
- Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
