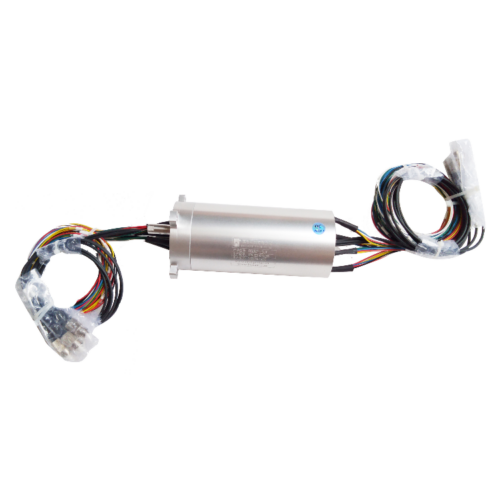

DHS054-30-3F photoelectric rotary joint out diameter 54mm with 3 channels optical fiber and 30 channels electrical
Photoelectric Rotary Joint Photoelectric Slip Ring FORJ
DHS054-30-3F series photoelectric rotary joint, with 3-channel optical fiber, 30-channel electrical , outer diameter 54mm, supports single mode and multi-mode, uses optical fiber as data transmission carrier, suitable for harsh environments, solves the rotation transmission problem for optical series and photoelectric systems.
Product features：
- Large data transmission capacity, high transmission rate
- Suitable for long-distance transmission
- No packet loss, no electromagnetic interference
- Compact design, light weight
- Applicable to harsh environments
- Extremely long service life
Typical applications:
Such as high-end robots, high-end material conveying systems, rotating turrets on vehicles, remote control systems, radar antennas, fiber optic sensor turntables (rate tables), medical systems, video surveillance systems, submarine operation systems, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, etc.;
|
DHS054-30-3F |
|||
|
The main parameters |
|||
| Number of circuits | 30 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Fiber Optic Slip Ring Parameters：
| Number of channels： | 3 |
| Working wavelength： | 1310nm/1550nm； |
| Fiber Type： | Single mode fiber； |
| Connector Type： | FC/PC； |
| Encapsulation method： | ∅2； |
| Insertion loss： | ≤3.5dB； |
| Insertion loss variation： | ≤1.5dB； |
| Pigtail length： | Rotor：500mm～550mm；
Stator：500mm～550mm； |
Standard product outline drawing:
Our advantage:
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Customized advantage: Leading Manufacturer of Standard, CustomizedSlip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
