DHK100-36 Non-standard custom 100mm through hole conductive slip ring with aviation plug connection

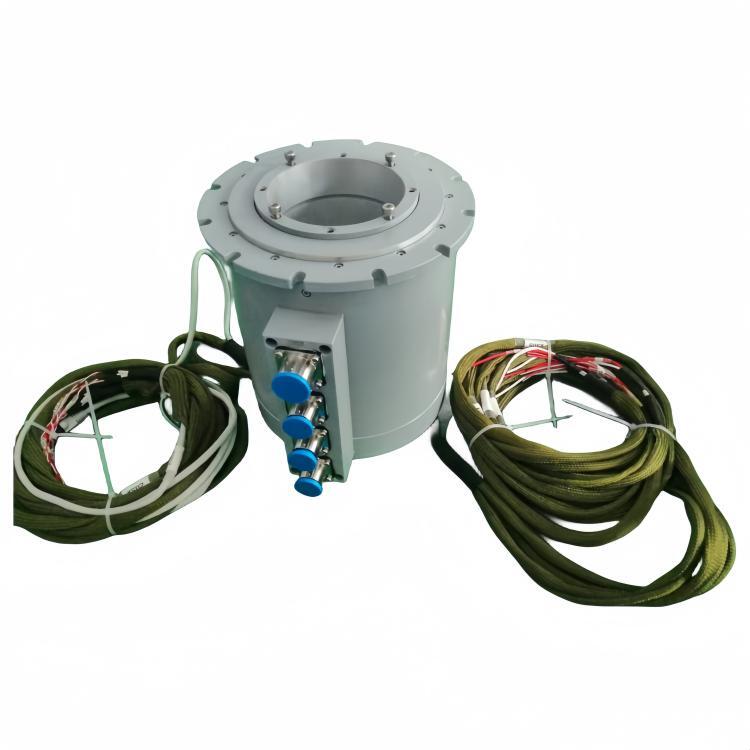

Through hole conductive slip ring DHK100-36
DHK100-36 series through hole conductive slip ring, inner hole 100mm, suitable for rotating electromechanical systems with diameter less than 100mm, standard power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 rings, used for 360 degrees Transmit power or signals in rotating systems. This series of large via electric slip rings often need to be combined with other signals, such as Ethernet, etc., and are used in slip rings for large stage theater equipment, composite mechanical equipment, etc.
Features
- Multi-contact brush contact design, long service life
- Integrated structural design, easy to install
- Power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 rings
- IP 54 protection level, IP68 can be customized
- Can integrate multiple signals and be compatible with multiple data protocols
- Maintenance-free use
Typical applications
- Automatic machine
- Cable reel
- Robot/Rotation Sensor
- Display/display equipment
- Packaging Machinery
- Industrial turntable
- Medical/pharmaceutical equipment
- Marking machine
- Filling machinery
- CNC machine tools
|
DHK100-36 |
|||
|
The main parameters |
|||
| Number of circuits | 36 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: High rotation accuracy, more stable performance and longer life. The contact material is made of precious metal + super-hard gold plating, which has small torque, stable operation, long life, small resistance fluctuation, and small contact resistance, ensuring excellent transmission performance.
- Company advantage: Ingiant Technology has accumulated rich experience in developing and producing highly reliable conductive slip rings for many years, especially in large size slip rings, effectively improving product quality and yield, and saving costs for customers.
- Excellent after-sales : The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products. Provide technical information and technical training support on a regular basis.
