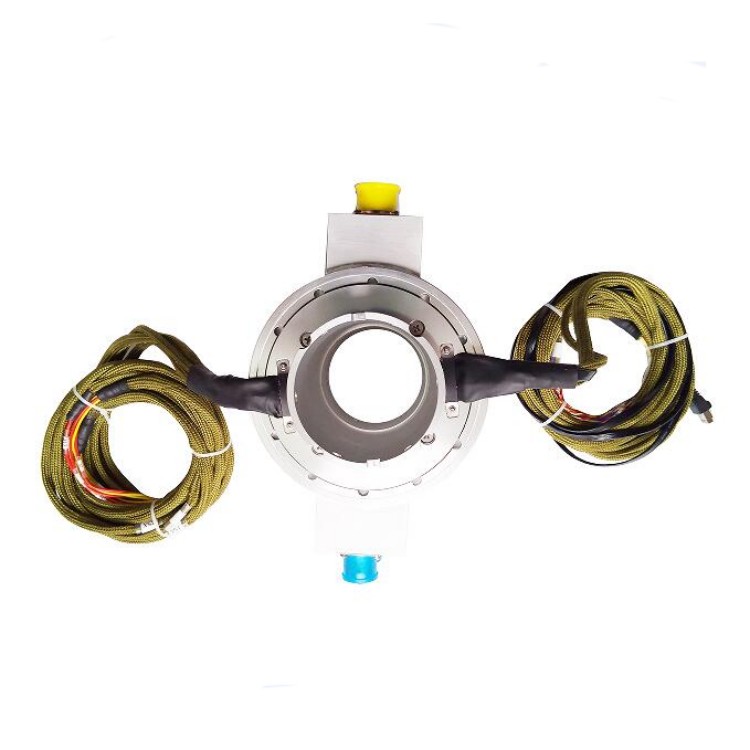

Through hole slip ring with aviation plug, hole diameter 85mm
Through hole slip ring, also called hollow shaft slip ring, what is a through hole slip ring? Structurally divided, it is also called hollow shaft slip ring.
The scope of use of this kind of slip ring is mainly those places that require unlimited continuous rotation to transmit power or data from a fixed position to a rotating position. Its manufacturing process and principle are similar to other slip rings, all of which are contacted by brush beams and contacts. , to transmit current, signal and other data from the fixed position to the rotating position.
The basic technical parameters of through-hole slip rings mainly include outer diameter, inner diameter, length, number of rings, voltage, current, maximum speed and so on.The application fields of through-hole slip rings are very wide, mainly including medical rotary CNC workbench, CNC machining center, wire reel, packaging machinery, wind power generation equipment, etc., in many components that need to transmit signals in fixed and non-fixed structures , need to use through-hole slip rings.
|
DHK085-34 |
|||
|
The main parameters |
|||
| Number of circuits | 34 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Product outline drawing:
Our Advantage：
- Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
- Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
- Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
