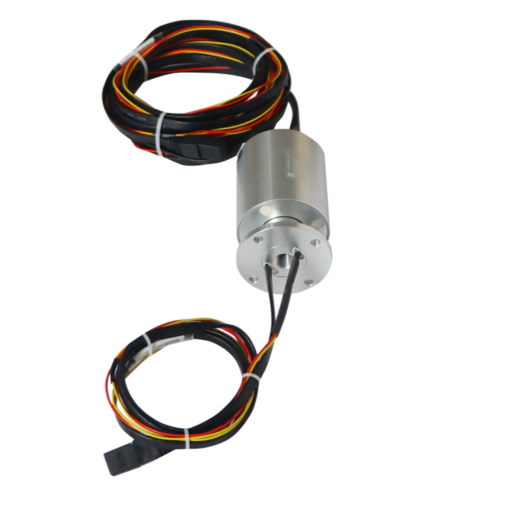

DHS060-7 100M Ethernet slip ring 1 channel 100M network diameter 60mm 2 channels power

Ethernet slip ring – DHS065-7 series

Accept customization, transmit 1 channel 100M Ethernet signal

Product features

It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss
The fiber brush contact structure ensures the product life
Stable transmission of 100M Ethernet signal
Integrated structure design, easy to install
Protection level IP51-IP68 optional
Standard models are available and can be customized
RJ45 male and female connectors are optional
Use high-quality Ethernet cable
Maintenance-free

Typical applications

Testing instruments, centrifugal test benches, separators

Process control equipment, packaging equipment, stackers, die presses

Revolving doors, product booths, car booths, revolving restaurants

Helicopters, shadowless surgical lamps, radar communication equipment

DHS060-7
The main parameters
Number of circuits	7	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

Standard product outline drawing:

Our advantage:

Product advantage: For a long time, we always adhere to the strict implementation of ISO9001 quality management system standards, in the design, incoming material inspection, production, testing and other links to carry out strict control, and constantly improve the production process. To ensure our production of conductive slip ring superior performance and quality stability.
Company advantage: Professional team, exquisite technology, sophisticated equipment, perfect management, advanced business philosophy
Customized advantage: Can be customized according to various types of non-standard precision slip ring, gas electric slip ring, micro conductive slip ring, HD slip ring, optical fiber slip ring, high-frequency slip ring, wind power slip ring, large current slip ring, motor slip ring, fan slip ring, hollow shaft conductive slip ring, electric rotating slip ring, crane center conductive ring, crane conductive ring, high voltage collector ring, etc. And other special requirements, we can meet the needs of customers.
