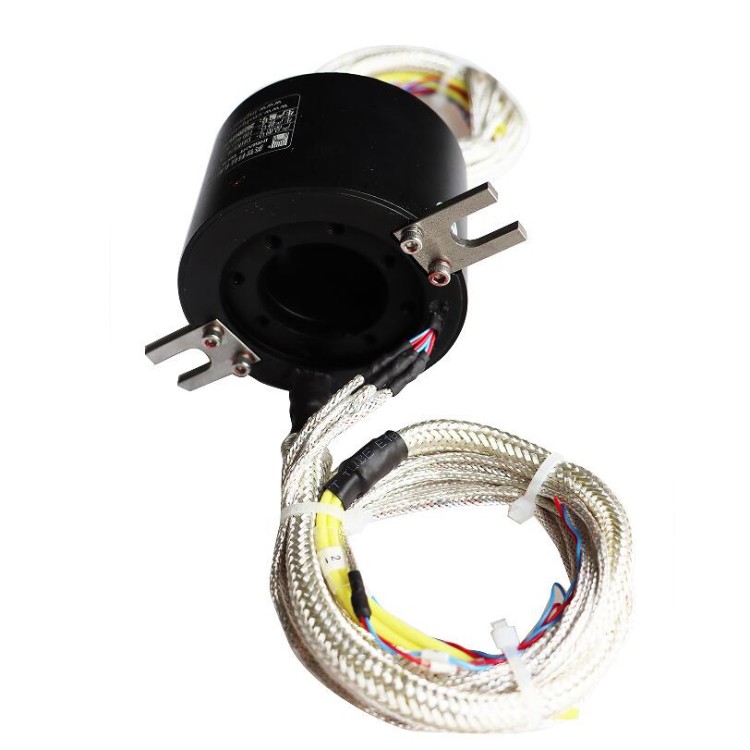

DHK034-10 hollow shaft slip ring hole diameter 34mm 10 channels
Use of the hollow shaft slip rings
A hollow shaft slip ring is fitted onto the hollow shaft. One or more screws fix the slip ring to the hollow shaft. With light loads, the clamping force is sufficient to fix the slip ring permanently to the shaft. If the wall thickness of the shaft is sufficient, the connection is improved by a screwed-in threaded hole.
The slip ring then has a positive connection that reliably prevents slipping. When using slip rings on media lines, it is important to ensure that the heat of the gases and liquids matches the operating temperatures of the modules. Hollow shafts are also very suitable for passing through the inner cable harness. It is thus protected in a particularly sustainable manner.
|
DHK034-10 |
|||
|
The main parameters |
|||
| Number of circuits | 10 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard product outline drawing:
Our Advantage
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
