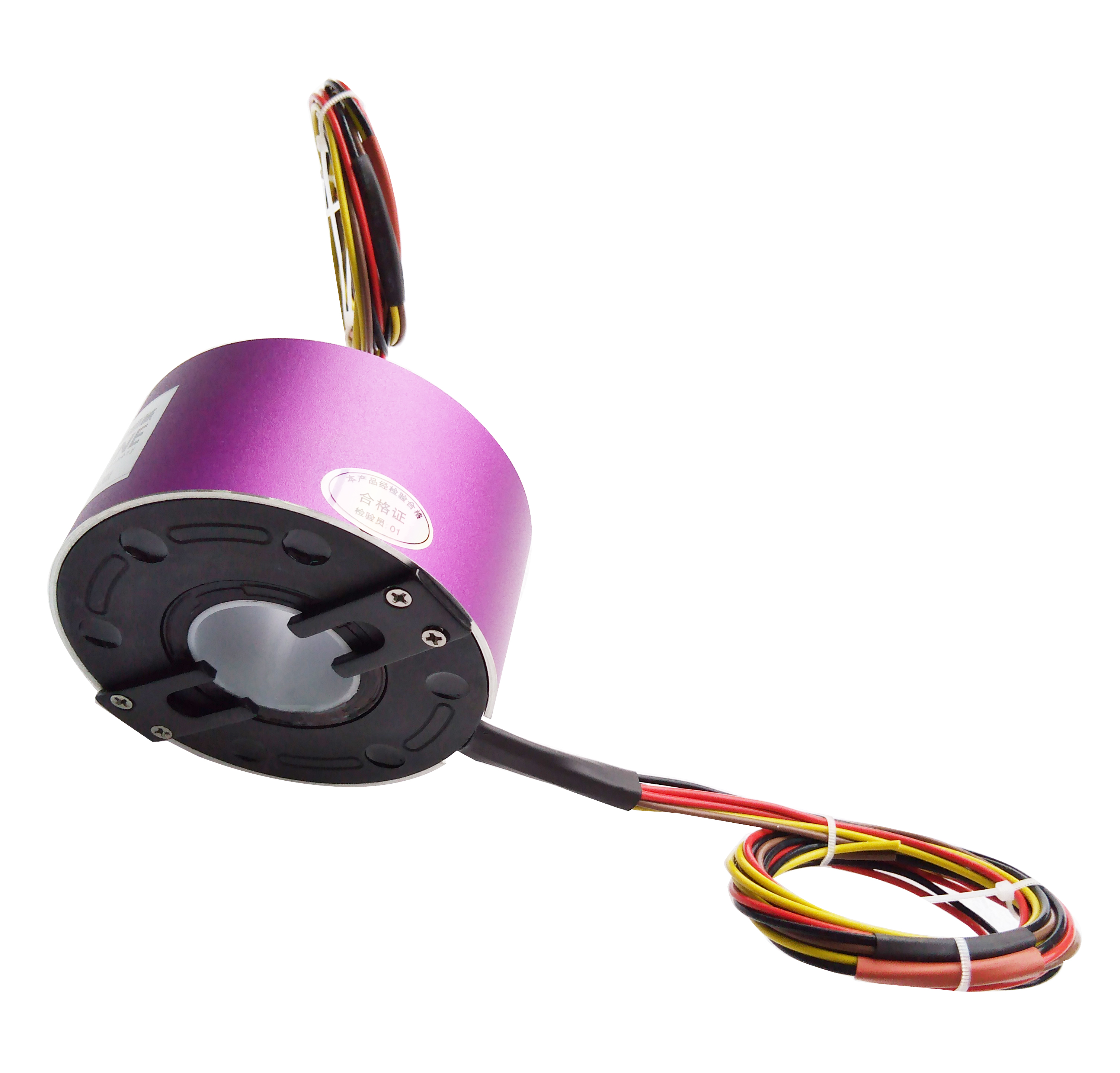

Ingiant premium hollow shaft slip ring 8 channels 10A
Hollow shaft slip rings are an excellent solution for mounting on an axle or for cable feed-through due to their open interior. They are typically used on round solid or hollow profiles of all types. Pipelines, plug-in axles or journals are typical installation locations for these modules. They can be used to supply power and data to a wide variety of applications. Among them are, for example, rotary switches, servo motors, control valves or wheel hub motors.
We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications.
If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
|
DHK035-8-10A |
|||
|
The main parameters |
|||
| Number of circuits | 8 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements.
Standard product outline drawing:
Our Advantage:
- Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
- Company advantage: The R&D team of Ingiant has strong research and development strength, rich experience, unique design concept, advanced testing technology, as well as years of technical accumulation and cooperation and absorption of foreign advanced technology, making our technology always maintain the international leading level and lead the industry.
- Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
