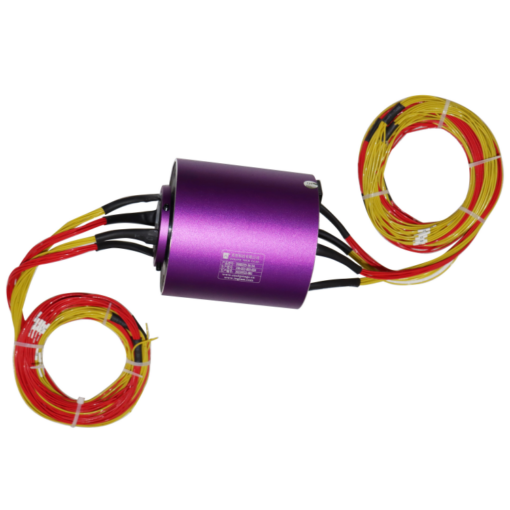

DHK035-36-5A through hole slip ring hole diameter 35mm 36channels 5A

INGIANT through hole slip ring

Specially designed with a central hole for installing hydraulic or pneumatic transmission shafts
Via diameters are available from 12.7mm, 25.4mm, 35mm, 38mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm to 500mm;
The conductive slip ring adopts a modular design, which can be arbitrarily expanded according to the power and signal requirements, and provides different electrical path combinations;
High sealing level is optional, up to IP68.
A variety of rotational speeds are available, with a maximum customizable speed of 8000RPM (no gas cooling required);
Adopt advanced precious metal multi-point contact fiber brush technology, which has higher reliability
We can provide non-standard customization with fast delivery, reliable quality and competitive price according to customer requirements.

DHK035-36-5A
The main parameters
Number of circuits	36	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

Standard product outline drawing:

Our Advantage

Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
Company advantage: The R&D team of Ingiant has strong research and development strength, rich experience, unique design concept, advanced testing technology, as well as years of technical accumulation and cooperation and absorption of foreign advanced technology, making our technology always maintain the international leading level and lead the industry.
Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
