DHS125-9-9F Customized outer diameter 125mm optoelectronic rotary joint 9-channel optical fiber
DHS125-9-9F series optoelectronic rotary joint has 9-channel optical fiber, 9-channel circuit, outer diameter 125mm, supports single-mode and multi-mode, uses optical fiber as the data transmission carrier, is suitable for harsh environments, and solves the problem of rotation for optical series and optoelectronic systems Transmission issues.
Features
- Large data transmission capacity and high transmission rate
- Suitable for long distance transmission
- No packet loss, no electromagnetic interference
- Compact design and light weight
- Suitable for harsh environments
- Extra long service life
Typical applications: high-speed video, digital, and analog signal transmission and control of radar, robots, material conveying systems, rotating turrets on vehicles, remote control systems, radar antennas, fiber optic sensing and other turntables (rate tables), medical systems, video Surveillance systems, subsea operating systems to ensure national or international safety systems, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, etc.
|
DHS125-9-9F |
|||
|
The main parameters |
|||
| Number of circuits | 9 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

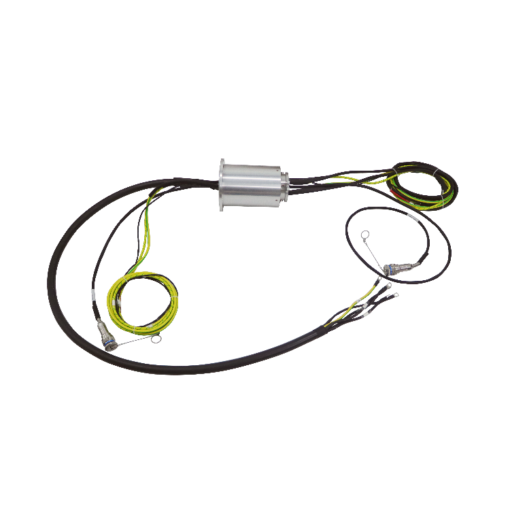

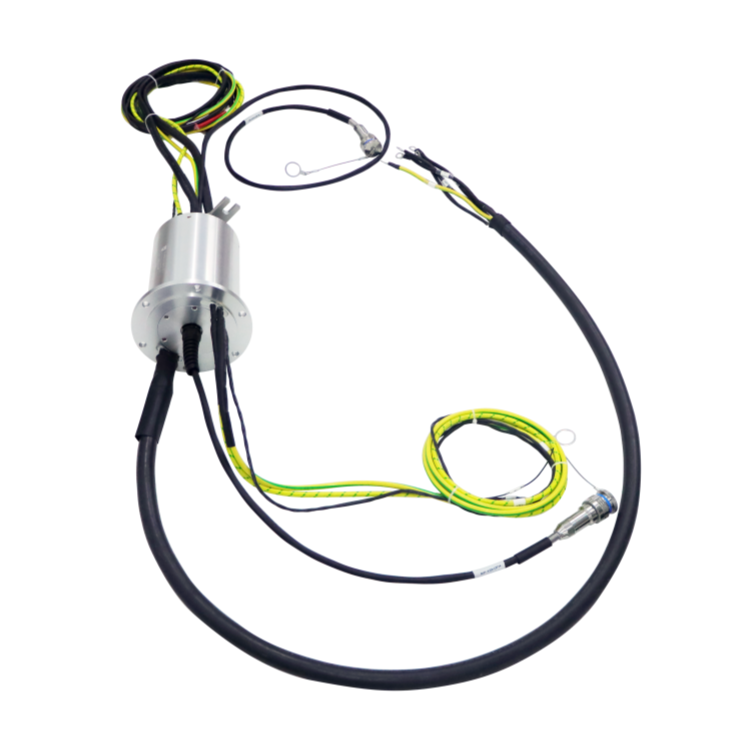

Product drawing:
Our advantage:
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system
- Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
