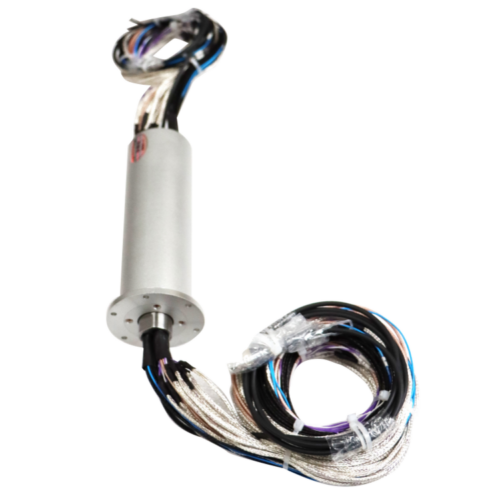

DHS045-51-1F photoelectric combination rotary joint 51channels combination single-channel optical fiber slip ring

DHS045-51-1F  photoelectric combination rotary joint, single-channel optical fiber slip ring,capable of transmitting 1 optical fiber and 1 to 72 electrical channels at the same time, an integral precision conductive slip ring with an all-aluminum alloy structure. The electrical path supports signal (2A), 10A, 20A, voltage 600VAC/VDC.

Photoelectric rotary joints, also known as photoelectric slip rings, use optical fibers as data transmission media, providing the best technical solution for data transmission between rotatingly connected system components. It is particularly suitable for applications that require unlimited, continuous or intermittent rotation, and at the same time need to transmit large-capacity data and signals from a fixed position to a rotating position. It can improve mechanical performance, simplify system operation, and avoid collisions due to the rotation of movable joints. Damage to fiber optics. It can be used with traditional electronic bus rings to create photoelectric hybrid bus rings to transmit power and high-speed data.

Typical application:

Photoelectric slip rings are currently the most technically difficult series of industrial slip rings. They are mainly used in situations where 360-degree continuous rotation requires guaranteed power and uninterrupted fiber optic signals: such as high-end robots, high-end material conveying systems, and military vehicles. Transmission and control of high-speed video, digital, and analog signals for rotating turrets, remote control systems, radar antennas, fiber optic sensing and other turntables (speed platforms), medical systems, video surveillance systems, submarine operation systems to ensure national or international security systems, emergency Lighting equipment, robots, exhibition/display equipment, medical equipment, etc.;
