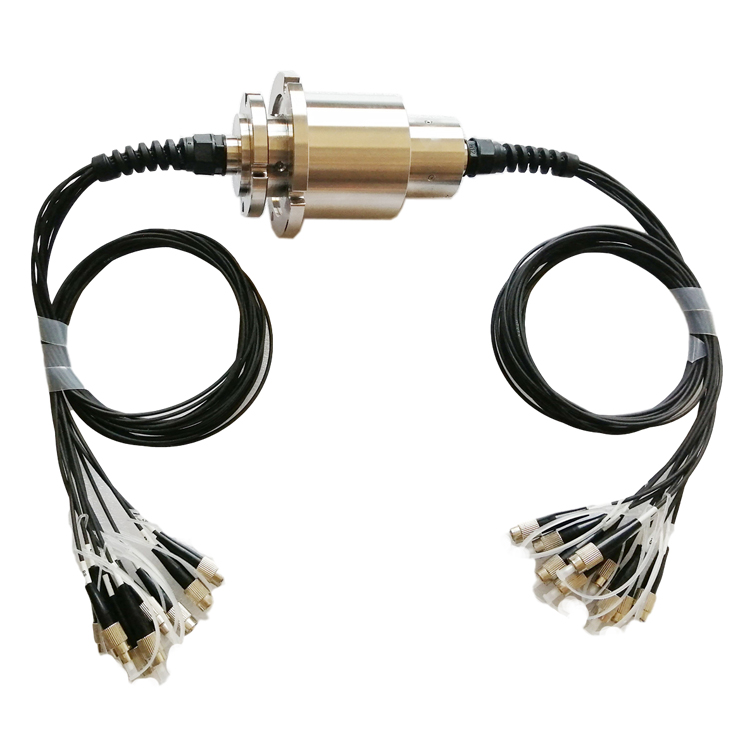

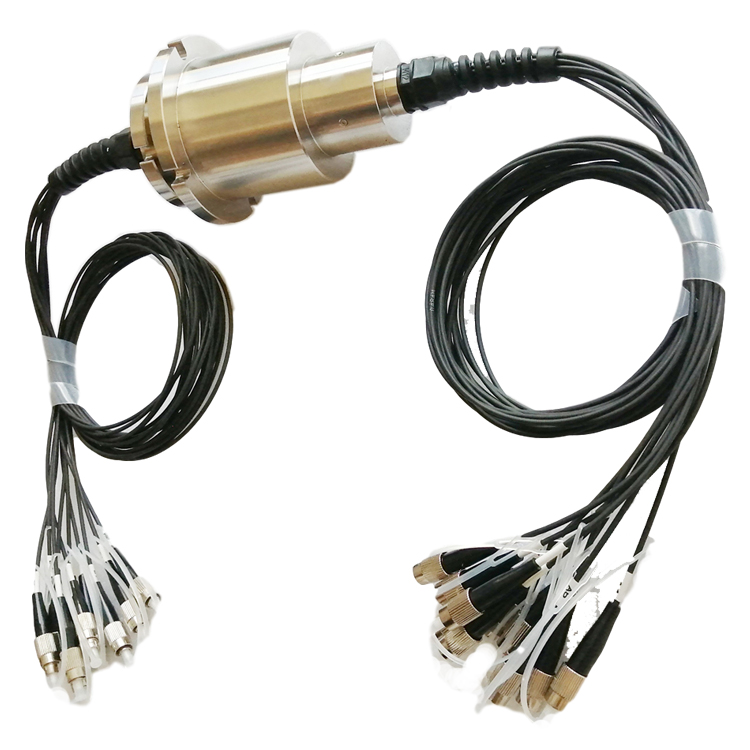

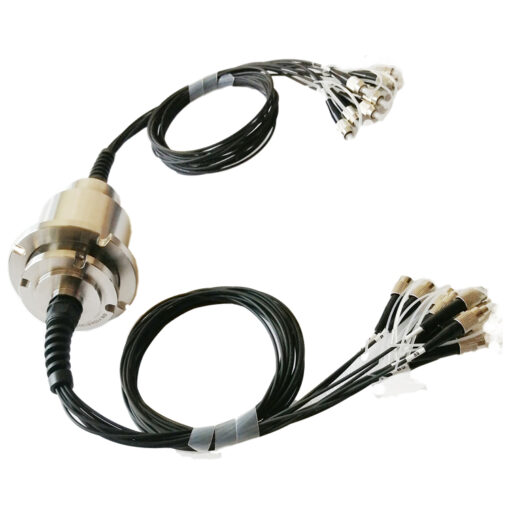

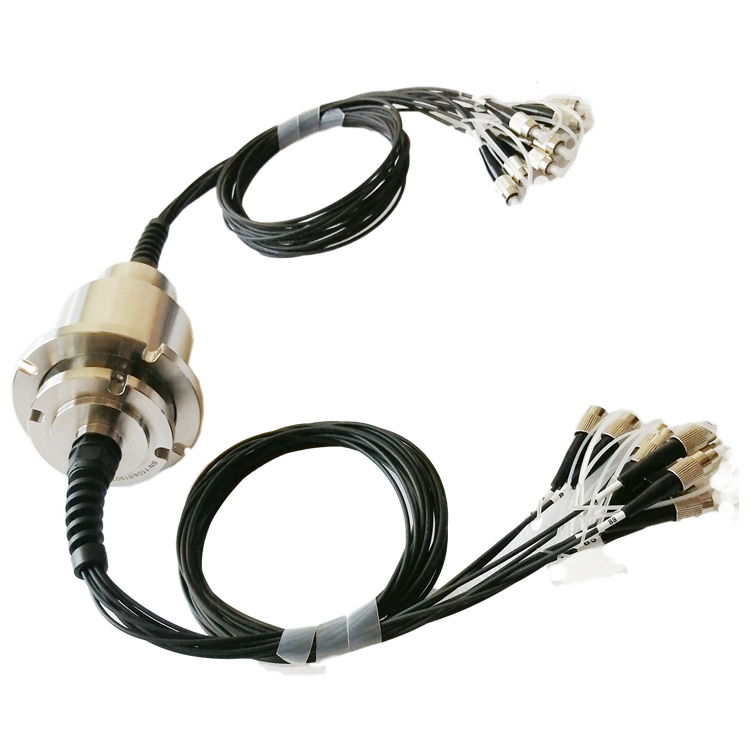

Ingiant fiber optic slip ring10 channels for ethernet systems

High transmission speed up to 1000Mbps.
Able to integrate many signal channels. Max channel capacity: 8 Gigabit Ethernet channels and 12 100M Ethernet channel.
Hybrid transmission of power signal and other complex signals.
Diverse slip ring models. Gigabit Ethernet slip rings optional in inner diameter from 0 to 120mm. 100M Ethernet slip rings optional in inner diameter from 0 to 200mm.
Exquisite contact materials ensure low electrical noise and super long service life.
Various kinds of connector to choose from

Use of the fiber optic slip ring

The fiber optic slip ring is used wherever fibre optic signals need to be combined with a rotary feedthrough. The low weight, high transmission power and inherent safety of fibre optic cables make them very popular as signal carriers in sensitive and critical areas. These include the following areas of application:

Aircraft construction
Drone construction
Shipbuilding
Surveillance technology
Vehicle construction

In all areas, fiber optic cables and their additional components convince with low weight, excellent technical fire protection, eavesdropping security, high data rates and long transmission paths without additional amplifiers. Especially in shipbuilding and aircraft construction, the increased use of fiber optic cables and their matching slip rings provides a significant plus in operational safety.

Category: Fiber optic rotary joint Tag: fibre optic slip ring

Description

Compact slip rings with optical fibers

Hybrid glass fibre slip rings for the transmission of analogue or digital optical signals with data rates up to 10 GBit. Singlemode or multimode fibres for single or multi-channel transmission. Customised and combined power and signal versions possible.

HS-10F
The main parameters
Bandwidth	±100nm	Maximum rotating speed	2000 RPM
Wavelength range	650~1550nm	Life expectancy	＞200 million round(1000 rpm/365 days continuous)
Maximum insertion loss	＜1.5dB	Working temperature	(-20~+60℃)（-40~+85℃ optional）
Insertion loss variation	＜0.5dB	Storage temperature	（-40~+85℃ ）
Return loss	≥30dB	Weight	15g
Withstanding power	≤23dBm	Vibration and shock standard	GJB150
Tensile capacity	≤12N	Protection level	IP54 (IP65、IP67 optional)

Standard product outline drawing:

Our advantage:

Product advantage: After a thorough analysis of your technical challenge, we will present you with a selection of possible solutions. In a joint discussion, we will then find the perfect fibre optic slip ring for you. We can supply you with any quantity from 1 piece. Trust us and our experience with slip rings of all kinds. We are the specialists who solve your problems. Let us inspire you.
Company advantage: More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. Depending on strong R&D ability and close cooperation with well-know enterprises & research institutes, Ingiant could not only provide standard industrial slip rings, but also customize different slip rings according to customer’s different requirements.
Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems.By providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
