Ingiant highly customized through bore slip ring bore 160mm for offshore platforms
Through Bore Slip Rings are used in applications where the customer requires the bore space for some other capabilities (cooling or air media; optical or RF channels, etc.). The Slip Ring can be designed to accommodate a wide variety of bore sizes.
What is a Through Bore Slip Ring ?
Through Bore Slip Rings can be drum or pancake-style designs which are highly customized for the application. The variety of hollow shaft dimensions is vast, ranging from very narrow to more than 1,000 mm. Through Bore Slip Rings can support signal and/or power transmission. They integrate bearings and provide low torque. Capacity to interface with the host system is a key requirement.
What are Through Bore Slip Rings used for ?
Radar antennas, scanners, aircraft rotors, periscopes, tool machinery, C-UAS systems, sights, high speed carousels, food and beverage machinery, offshore platforms.
|

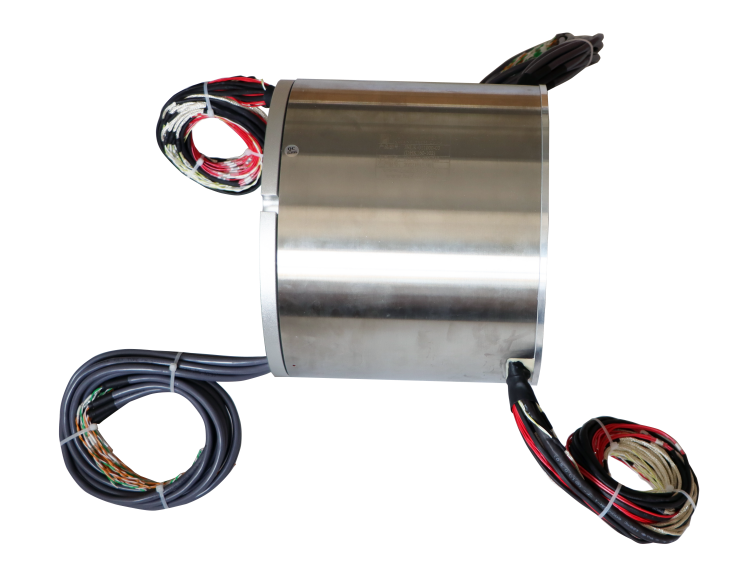

DHK160-102 |
|||
|
The main parameters |
|||
| Number of circuits | 102 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
- Company advantage: Transmission technology for complex industrial and safety-relevant applications form the core of our product range. All products can be individually adapted to the applications in order to offer you added value. Premium engineering – that is our claim for every single product we manufacture. We would like to convince you of this.
- customised advantage: The different Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value. We support our customers for customised solutions .
