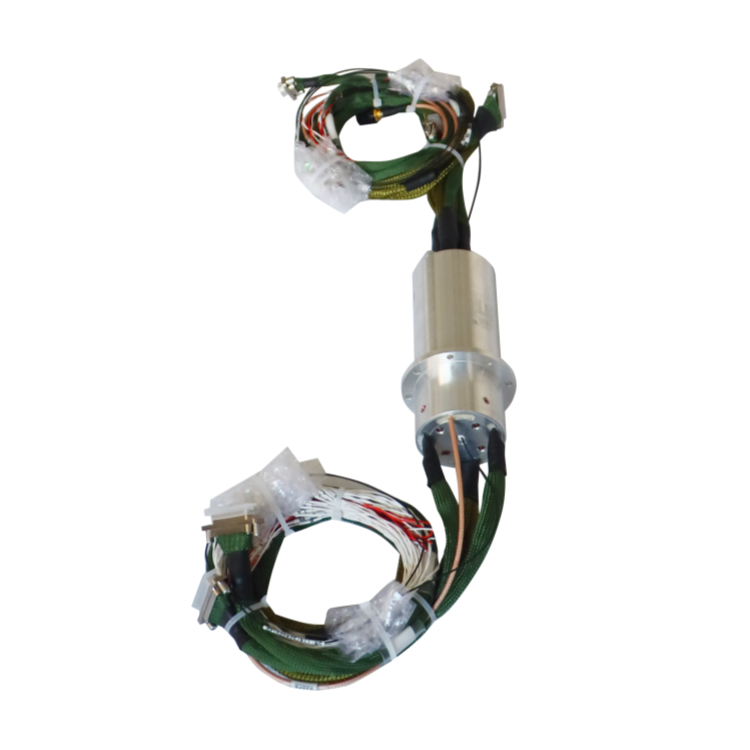

DHS047-65-1F Military quality single-channel photoelectric slip ring 47mm with 65 channels power and signal
DHS047-65-1F (1 channel optical fiber + 65 power signals)
The DHS047-65-1F series is an photoelectric slip ring that can transmit 1 optical fiber and 1 to 65 power signals at the same time. The overall outer diameter is very small (47mm), and the entire product is very compact, specifically designed for applications with requirements on space size.
Product features
- Large data transmission capacity, high transmission rate
- Suitable for long-distance transmission
- No packet loss, no electromagnetic interference
- Compact design, light weight
- Applicable to harsh environments
- Extremely long service life
Typical applications
- Robots
- Material handling systems
- Turrets on vehicles
- Remote control systems
- Medical systems
- Video surveillance systems
- National or international security systems
- Subsea operation systems
|
DHS047-65-1F |
|||
|
The main parameters |
|||
| Number of circuits | 65 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our advantage:
- 1：Product advantage: The smooth ring parts are processed by high-precision CNC, and the assembly is assembled and manufactured in a dust-free workshop. The outer shell is made of stainless steel, which is dustproof and waterproof. The protection level can reach IP68, which can avoid the influence of environmental factors such as humidity, temperature, and magnetic interference.
- 2：Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
- 3：INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warranty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
