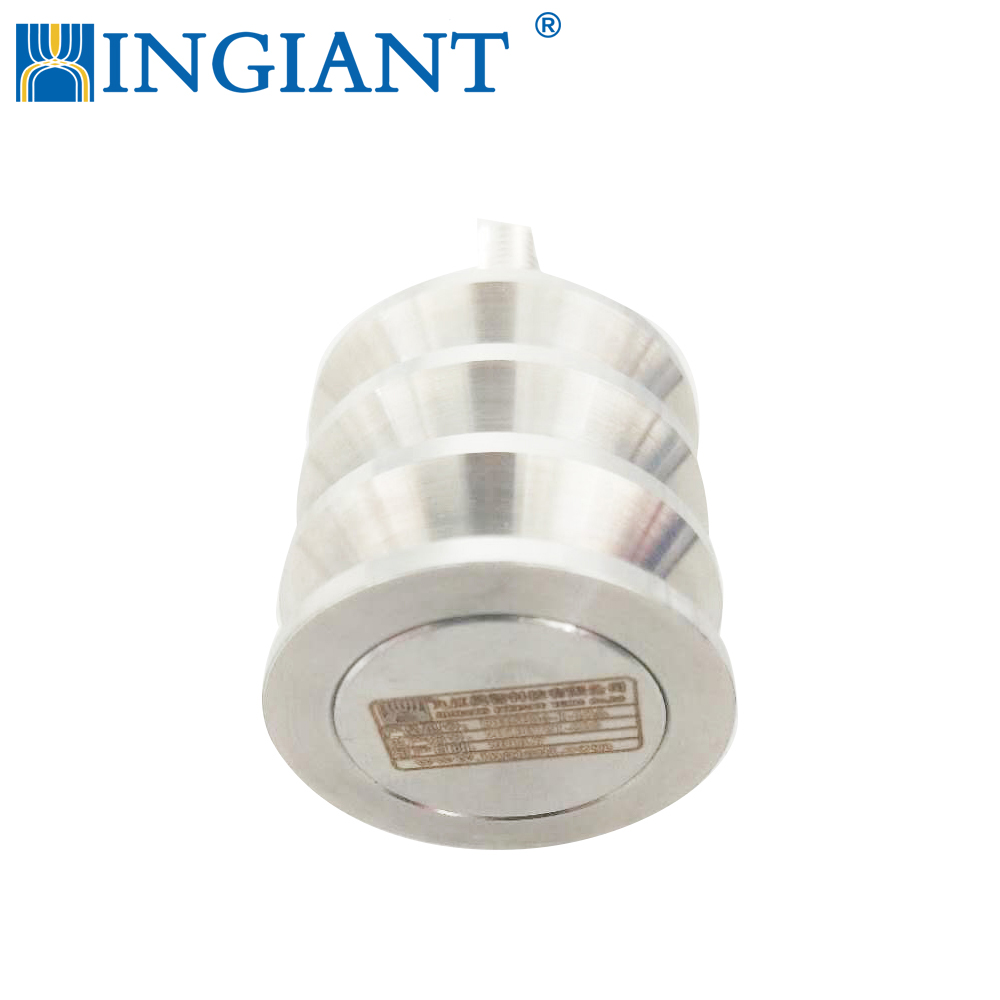

Ingiant customized solid shaft slip ring 1channel 10A for remote operated vehicales
The DHS series uses special technology to obtain multiple contact points between brushes and rings, low frictional torque, reduced mechanical noise and low wear.
Slip rings can be used in any system that requires the transmission of electrical and/or power signals to intermittent or continuously rotating shafts. Due to the smaller ring diameter, the DHS series achieves low peripheral speeds between the brushes and the ring and reduces dynamic unbalance, which means very low wear. In addition, the use of precious metals (gold on gold alloy) ensures a long service life, reduces noise and interference between circuits, and low frictional torque.
Application filed:
Agricultural machineries, Surveillance Camera.,Mechanical handling,Lifting equipment and cable reelers,Construction machines,Capping machines,Control systems,Medical robots and systems,Packaging machines,Robotics, recreation facilities ,Satellite assemblies,Wind tunnels,Sub sea applications,Remote operated vehicales
|
DHS034-1-10A |
|||
|
The main parameters |
|||
| Number of circuits | 1 | Working temperature | “-40℃~+65℃” |
| Rated current | 10A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP51 |
| Insulation resistance | ≥500MΩ @500VDC | Housing material | Stainless steel |
| Insulation strength | 500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | 5A per circuits with AF-0.35mm^2, rest with AF-0.15mm^2 |
| Rotating speed | 0~300rpm | Lead wire length | 200mm + 15mm |

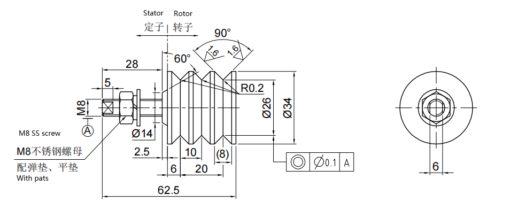

Product outline drawing:
Our advantage:
- Product advantage: Our slip rings are widely used in civil and military fields ranging from Industrial automation equipment,Medical equipment,Wind power equipment,Test equipment,Exhibition,display equipment,Robots,Turntable equipment,Amusement equipment,High-speed railway equipment,Packaging machinery, Ship offshore equipment,Construction machinery,…,etc., Ingiant also supplies multicircuits, high voltage, high speed, high frequency rotary joints and Hydraulic/ pneumatic/ encoder hybrid slip rings.
- Company advantage: Ingiant is a slip ring manufacture with abundant experience in developing slip rings for electro-optical pod. For civil-used UAVs, miniature slip rings and super miniature slip rings are ideal choices. As for drone for special purpose, Ingiant also has many successful cases. Ingiant fiber optic rotary joint is able to transmit optical signals with little data loss and no interference. Beside, Ingiant also provide hybrid optical slip ring that can transmit power and signals at the same time. With smooth rotation, Ingiant slip rings are very stable and endurable. Depending on strong R&D ability and close cooperation with well-know enterprises & research institutes, Ingiant could not only provide standard industrial slip rings, but also customize different slip rings according to customer’s different requirements.
- Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
