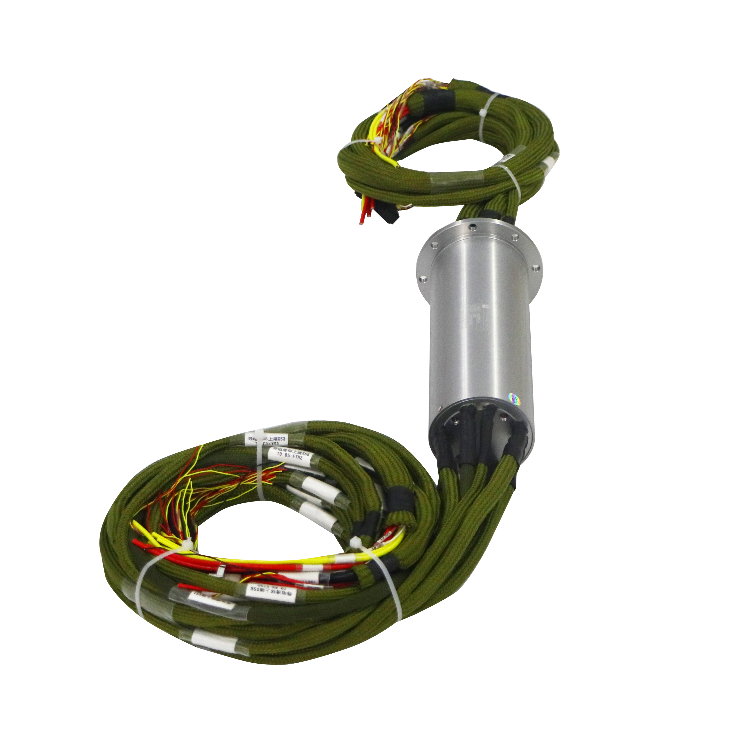

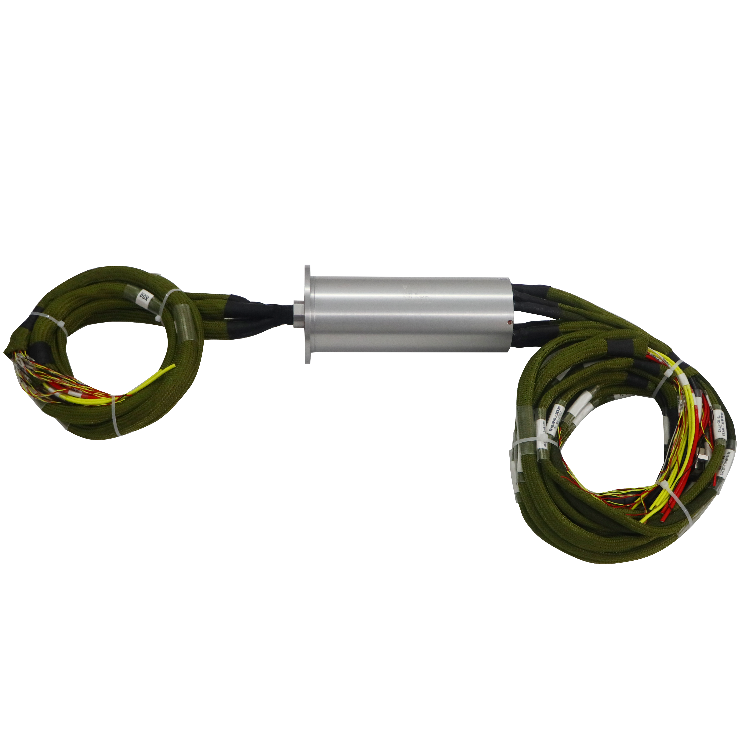

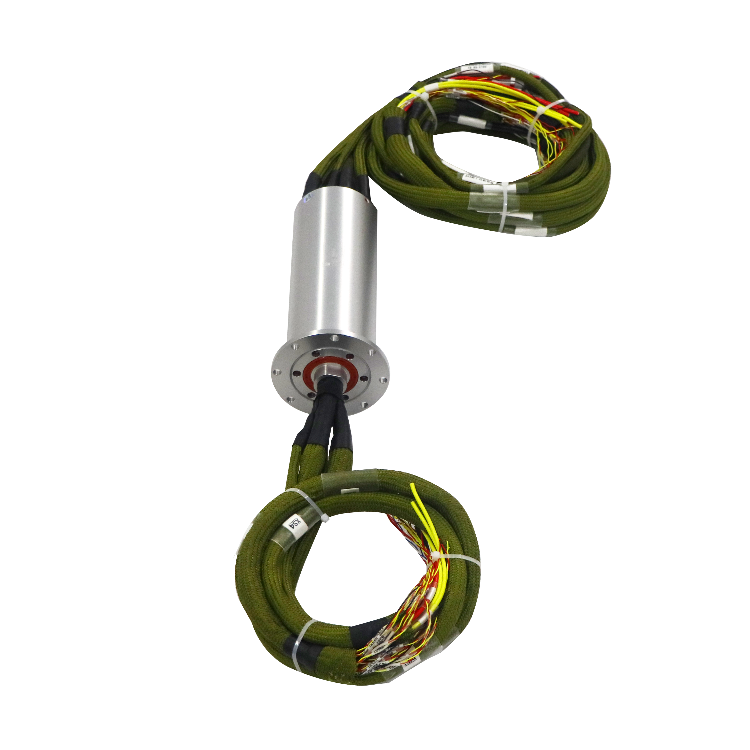

DHS070-69 Ingiant Military grade OD70mm rotor flange conductive slip ring for rotary table
DHS070-69 series rotor flange conductive slip ring
DHS070-69 series rotor flange conductive slip ring is a general term for a series of slip rings with a rotor part with an outer diameter of 70mm and a connecting flange.
- Rotor flange slip rings can be used for rotary tables, cable reels, and packaging equipment.
- Solid slip rings, no through holes in the center, suitable for flange end face installation.
- More paths and larger currents can be achieved.
- The internal wiring and special shielding module design are convenient, more stable and reliable.
- Usually this type of product is used to customize various sensitive signals or encoder signals.
Typical applications:
Industrial machine processing centers, rotary tables, heavy equipment towers, cable reels, packaging equipment, magnetic clutches, process control equipment, rotary sensors, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, revolving doors, etc.;
|
DHS070-69 |
|||
|
The main parameters |
|||
| Number of circuits | 69 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our advantage:
- Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Excellent after-sales and technical support service: Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
