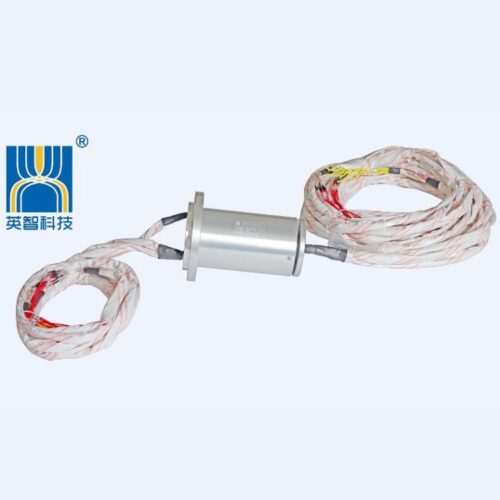

Ingiant non-standard customization high precision slip rings
What types of slip rings are there?
Slip ring assemblies are both elementary components of electromechanics and important components for industrial communication via signals, such as fieldbuses and Ethernet.
Corresponding tailor-made and modular slip ring systems can therefore be found in numerous electrical machines, their design ensuring the functionality of entire machine complexes.
They are already increasingly required for the contactless transmission of high data rates. For this purpose, they must meet numerous requirements, which Ingiant guarantees as a manufacturer of slip rings.
– Encapsulated slip rings
– Automation slip rings
– Hollow shaft slip rings
– Pancake slip rings (with and without housing)
– Faston slip rings
– Miniature pneumatic slip rings
– Electrical rotary joints
– Ethernet slip rings
– USB slip rings
– Fiber optic slip rings
– Hybrid slip rings in various combinations
You can choose from simple slip rings for power transmission, or hybrid combinations that transmit media or signals or data in addition to power.
ings are there?
Slip ring assemblies are both elementary components of electromechanics and important components for industrial communication via signals, such as fieldbuses and Ethernet.
Corresponding tailor-made and modular slip ring systems can therefore be found in numerous electrical machines, their design ensuring the functionality of entire machine complexes.
They are already increasingly required for the contactless transmission of high data rates. For this purpose, they must meet numerous requirements, which Ingiant guarantees as a manufacturer of slip rings.
– Encapsulated slip rings
– Automation slip rings
– Hollow shaft slip rings
– Pancake slip rings (with and without housing)
– Faston slip rings
– Miniature pneumatic slip rings
– Electrical rotary joints
– Ethernet slip rings
– USB slip rings
– Fiber optic slip rings
– Hybrid slip rings in various combinations
You can choose from simple slip rings for power transmission, or hybrid combinations that transmit media or signals or data in addition to power.
| DHS105-24 | |||
| The main parameters | |||
| Number of circuits | 24 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements.
Our advantage:
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
