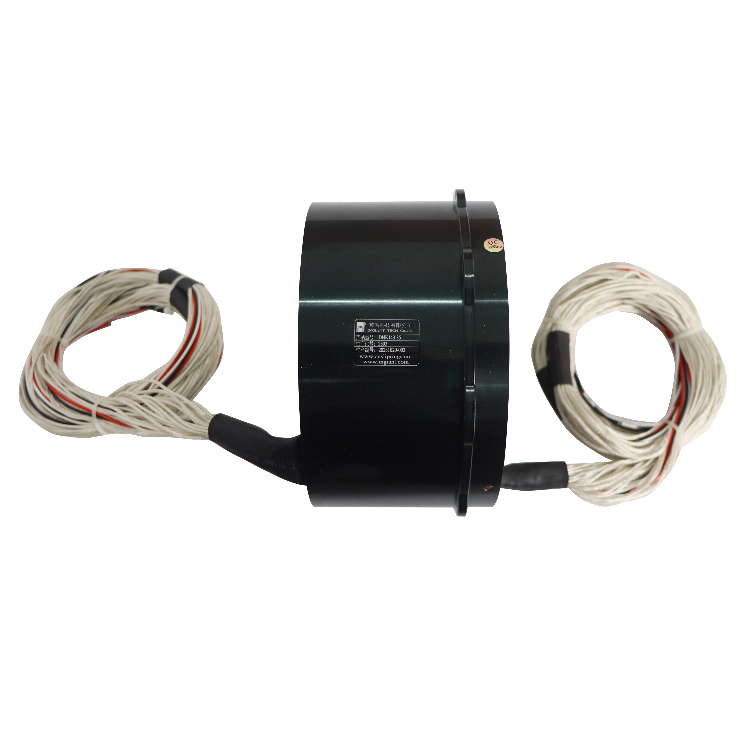

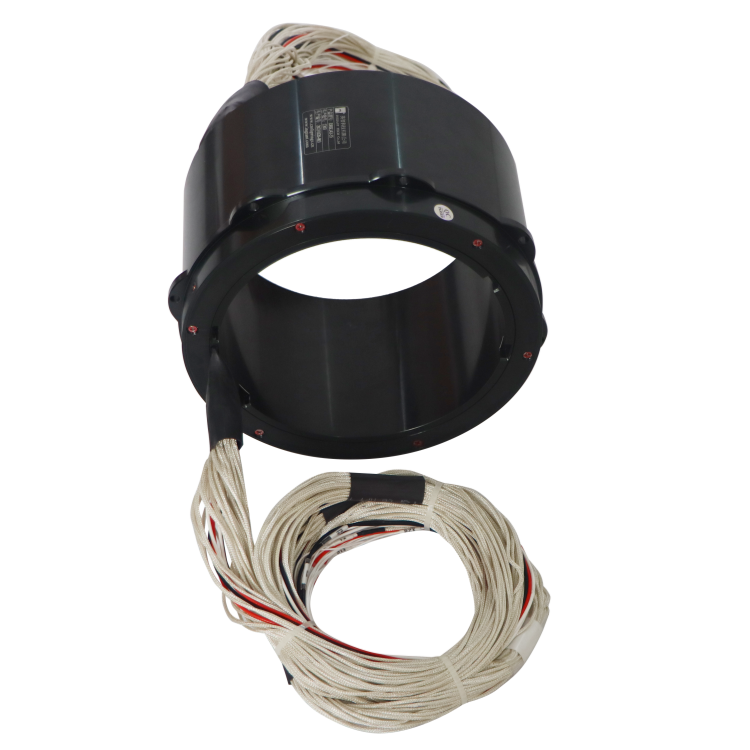

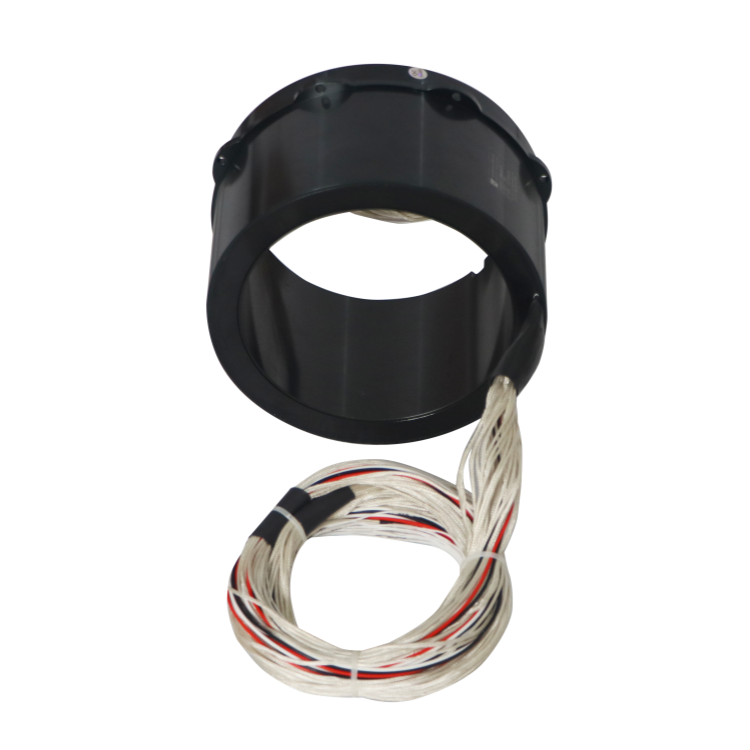

DHK143-35 ID143mm through hole slip rings have 35 electrical channels used for automatic potting machines
Through hole slip ring – DHK143 series
Support customization, standardized product inner diameter 3-500mm, current 2-1000A
DHK143-35 series through-hole electric slip ring, inner hole 143mm, suitable for rotating electromechanical systems with diameter less than 143mm, standard power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 rings, used for 360 degrees Transmit power or signals in rotating systems. Mostly used in milking machine turntables, automatic potting machines, hose production equipment, etc.
Features
- Able to integrate power, signal and data in a rotating transmission system without interference
- Simultaneous transmission of temperature control signals and thermocouple signals
- Fiber brush bundle technology ensures reliable contact and low friction coefficient
- Adopt a more reliable all-metal shell protective structure
- Integrated design for easy installation
- 3-500mm aperture optional
- 0-20A current, 0~600VAC/VDC voltage optional
- 1-300 channels optional
|
DHK143-35 |
|||
|
The main parameters |
|||
| Number of circuits | 35 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Long life.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
