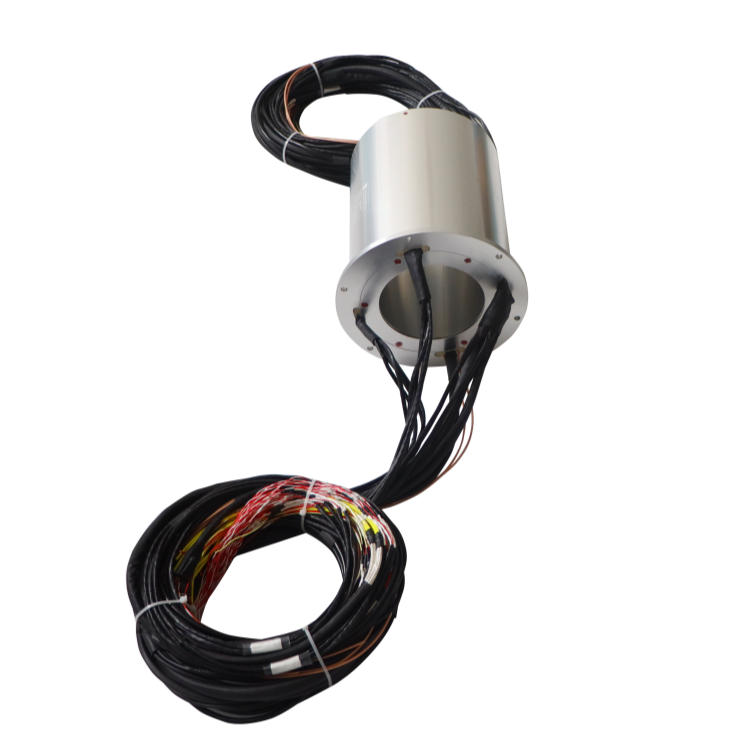

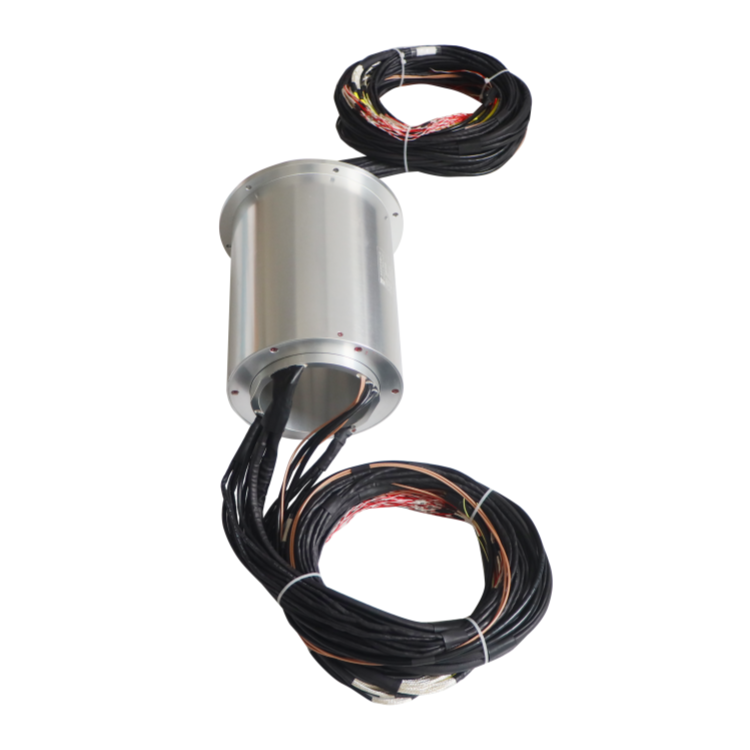

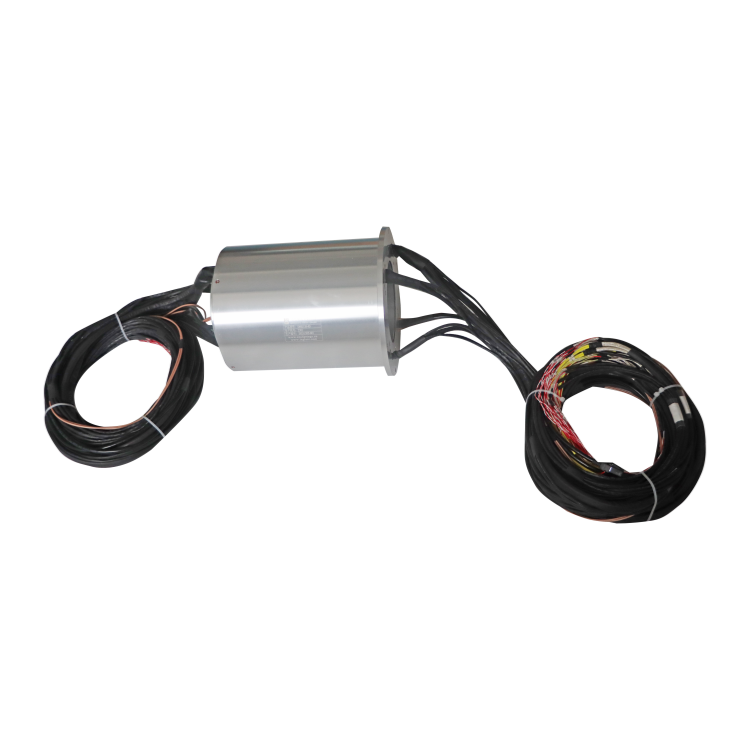

DHK120-83 120mm inner diameter through hole slip ring 83 channels power and signal used for automatic cutting equipment
Through hole slip ring – DHK120 series
Support customization, product inner diameter 3-500mm, current 2-1000A
DHK120-83 series through hole slip ring, inner hole 120mm, suitable for rotating electromechanical systems with diameter less than 120mm, standard power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 rings, used for 360-degree rotation Transmit power or signals in the system. Mostly used in large-scale automated control systems, heat treatment equipment, automatic cutting equipment, etc.
Features
- Multi-contact brush contact design, long service life
- Integrated structural design, easy to install
- Power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 rings
- IP 54 protection level, customizable
- Can integrate multiple signals and be compatible with multiple data protocols
- Maintenance-free use
|
DHK120-83 |
|||
|
The main parameters |
|||
| Number of circuits | 83 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

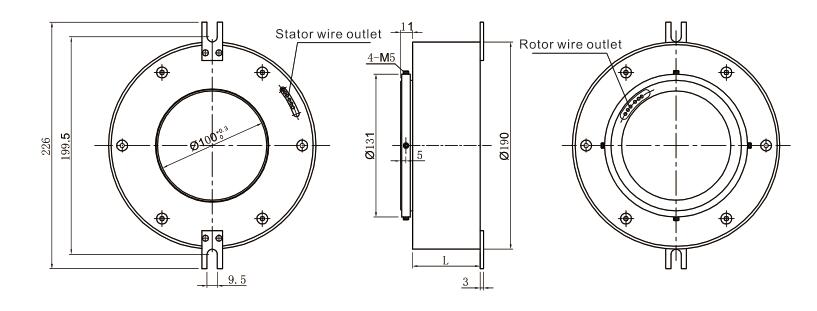

Standard product outline drawing:
Our Advantage
- Product advantage: The through-hole slip ring can fully meet the transmission of power, signal, weak current, large current or high voltage under 360-degree unlimited continuous rotation. The main features are low torque, low electrical noise, low loss and easy maintenance.
- Company advantage: More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. Depending on strong R&D ability and close cooperation with well-know enterprises & research institutes, Ingiant could not only provide standard industrial slip rings, but also customize different slip rings according to customer’s different requirements.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
