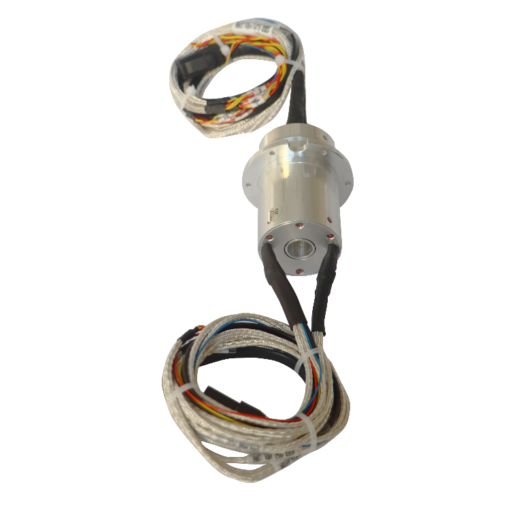

DHK013-25-001 13mm inner diameter through hole industrial bus slip ring used for radar
Industrial bus slip rings are specially designed for various industrial bus data transmission. Supports different bus types, such as CANBUS, Profibus, EtherNET, DeviceNET, RS422, RS485, RS232, PLC, DP, CC-LINK, etc.
Industrial bus slip ring DHK013-25-001 series, inner diameter 13mm, through-hole structure, suitable for rotation applications requiring outer diameter ≤ 13mm. 25-channel hybrid Ethernet, servo power supply, radar power supply and other signal transmission
Features
- Can transmit current, sensor, control circuit, Ethernet and other signals
- Stable performance, large return loss, small insertion loss, anti-crosstalk
- Unique coating process, long service life
- Optional RJ45 network interface
- Compatible with data communication protocols
|
DHK013-25-001 |
|||
|
The main parameters |
|||
| Number of circuits | 25 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: continuous transmission of power, signals, weak current, high current, high voltage under 360 degree unrestrained rotations. Low torque, low electrical noise, low loss and easy maintenance as the main features.
- Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
- Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
