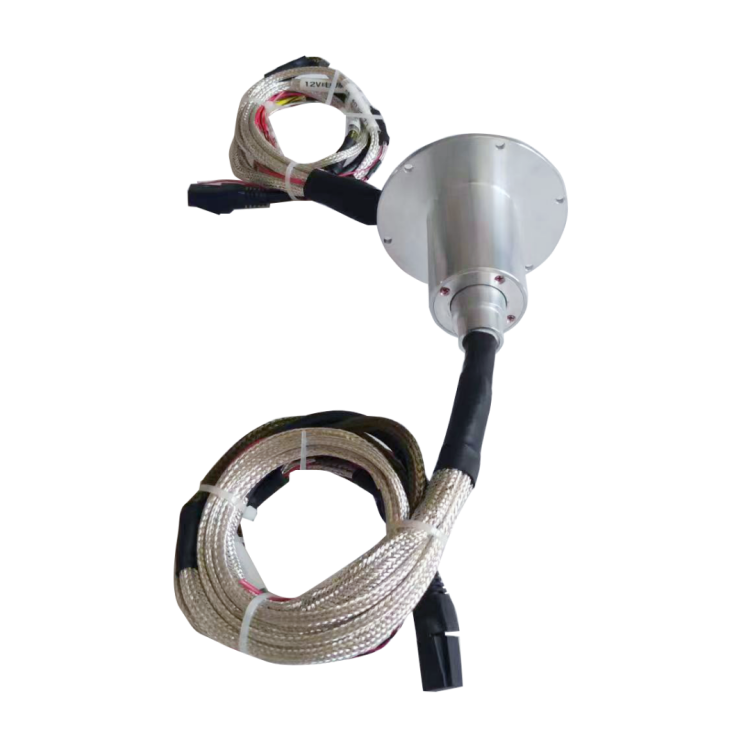

Ingiant perfect compact slip ring solutions with 45mm 28channels
Compact slip rings for complex industrial power and signal transmission. Advanced fibre brush technology for long life and low contact resistance. Combined power and signal transmission possible.
Advantages of using a slip ring
- Prevents wires from tangling
- Smooth transfer of power and data between rotary systems
- Can handle a wide range of high-power rotary applications
How does a slip ring work?
- A slip ring rotates under a variety of speeds depending on the application. The slip ring rides along a center shaft and sits on a base plate. The base plate or mount is held stationary and the shaft rotates in the center. This allows the slip ring to transfer power from a stationary system to a 360-degree rotating unit, completing the circuit.
|
DHS045-28-002 |
|||
|
The main parameters |
|||
| Number of circuits | 28 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements.
Standard product outline drawing:
Our advantage:
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warrenty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
