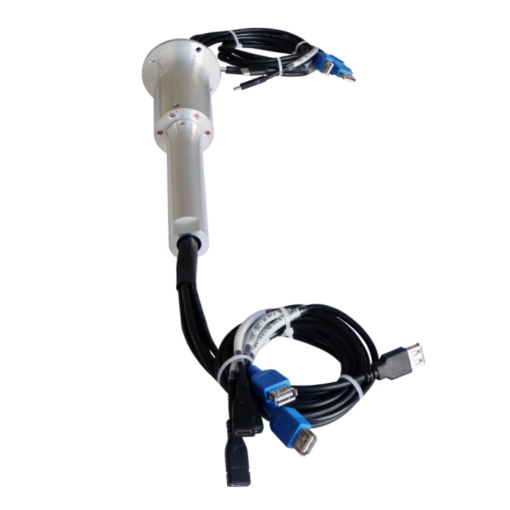

DHS050-30-2A Standard solid shaft slip ring 30channels 2A

What is the function of the solid shaft slip ring?

In the operation of mechanical equipment, 360 degrees of rotation is needed to achieve the purpose of automatic production, but in this process, the wire line will be wound together with the rotation of different parts of the machine, resulting in damage or burn of the machine.

In order to solve this problem, a method is adopted to disconnect the wire and keep the wire contact at least one end without rotating with the machine. Such a product is called conductive slip ring, the function of slip ring is to solve the wire winding and invented, is the best way to solve the 360 degree rotation of mechanical equipment, in many mechanical equipment, especially automatic mechanical equipment, often used.

In some special areas, such as control signal source, transmission power supply, micro electrical signal, optical signal and other different transmission media, at the same time can be transmitted without interference, this situation in many areas of high-end industrial equipment will be used, so the role of the slip ring is very huge!

Category: Capsulated Slip Rings Tag: solid shaft slip ring

Description

DHS050-30-2A
The main parameters
Number of circuits	30	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

Standard product outline drawing:

Our advantage:

Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions. Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.:
Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warranty, our goods are guaranteed for 12 months from date of sale, under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.

DHS050-30-2A Standard solid shaft slip ring 30channels 2A
