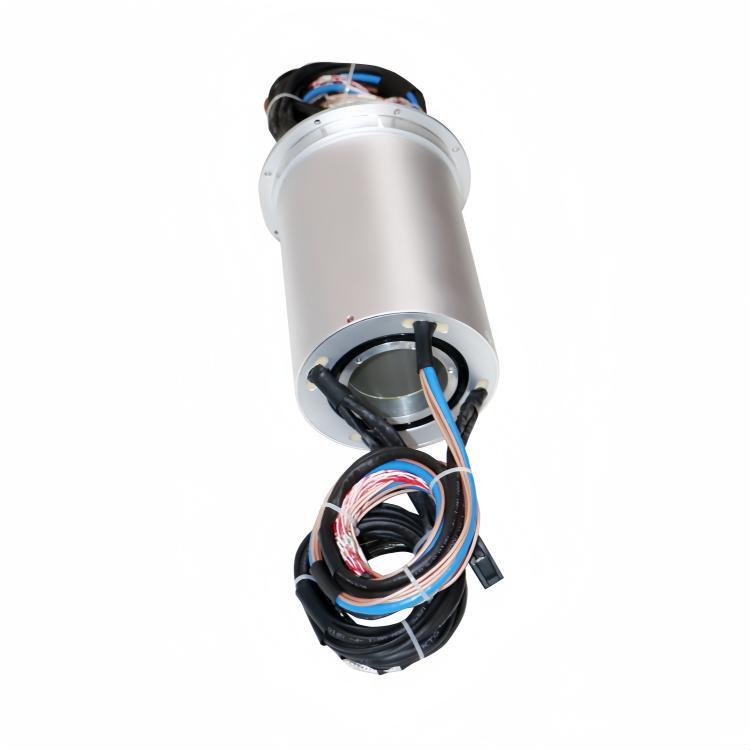

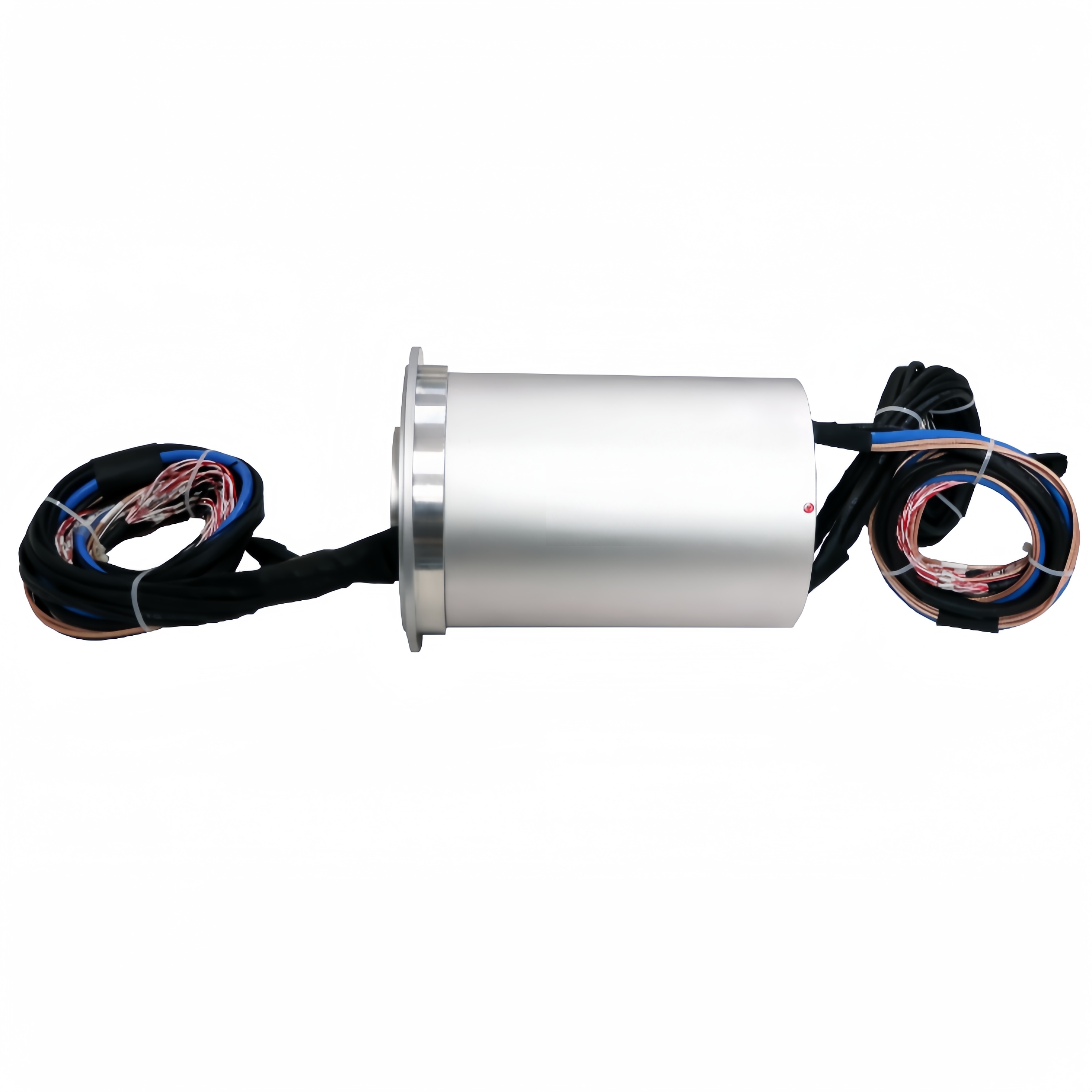

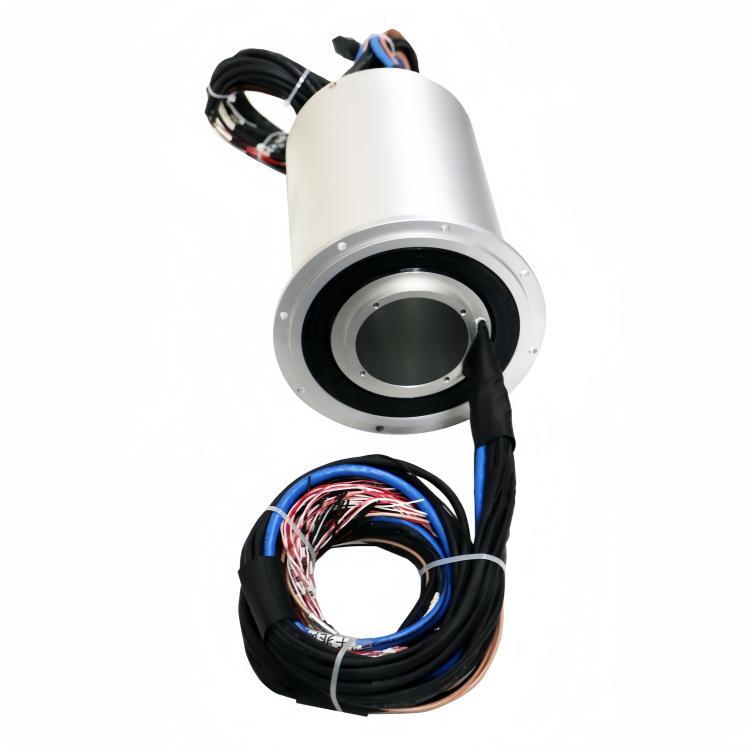

DHK070F-94 IP65 waterproof slip ring , Gigabit Ethernet,hollow shaft slip ring
Waterproof slip ring hollow shaft slip ring series, supports signal (2A), 10A, magnification *10A, voltage 600VACNDC. Used for micro voltage, high frequency, EMF, thermocouple, computer signal, strain gauge, current, Inter of any rotating body Bus, Can-Bus, RS422, RS485, PLC control, digital/analog video, digital audio, Gigabit Ethernet, heavy crystal sensor signal and power connection, Ingiant precision conductive slip ring has rigorous design, stable performance and leading technology.
Features
- Specifically designed for underwater operations, waterproof operations, and rain protection
- Industrial grade product, flange installation, IP65, IP68 optional;
- Customized combinations can be used to transmit USB, Ethernet, optical fiber and other signals;
- Gold-gold contact, using imported sealing and military-grade electroplating treatment;
- The shell is made of stainless steel, which is corrosion-resistant, acid and alkali resistant, and has better protection.
Typical applications:
Undersea robot slip ring, underwater submarine special slip ring, underwater musical fountain special slip ring, underwater robot slip ring, offshore engineering slip ring, agricultural machinery special slip ring, forest operation equipment slip ring
|
DHK070F-94 |
|||
|
The main parameters |
|||
| Number of circuits | 94 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

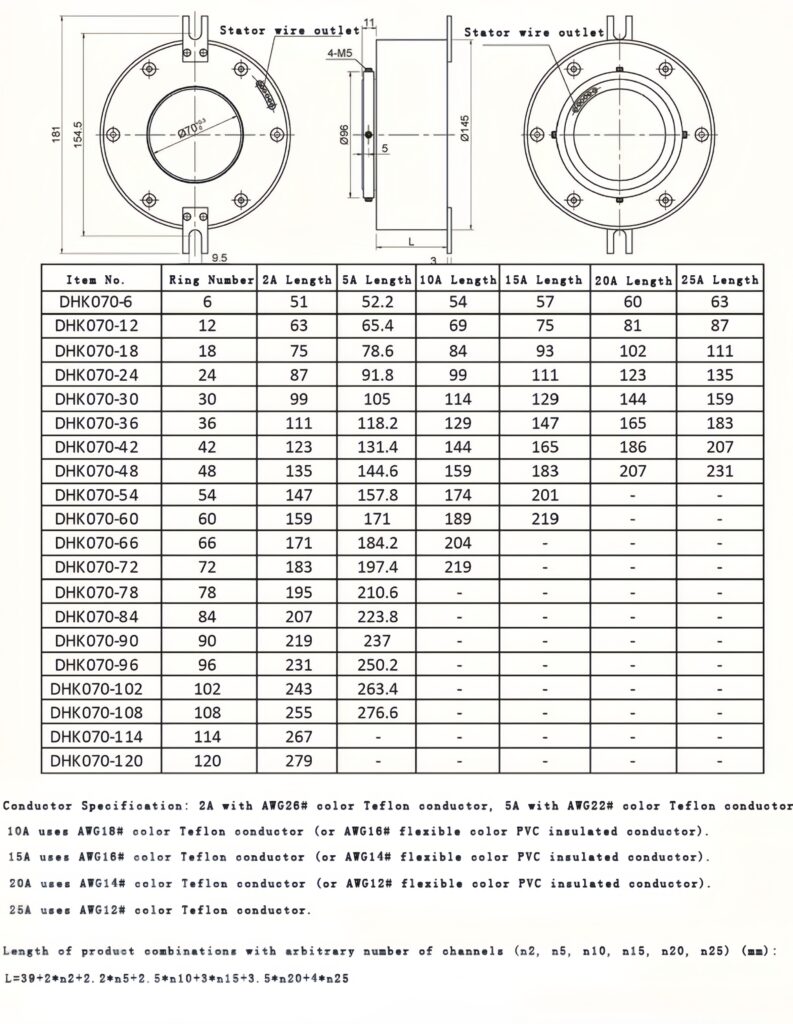

Standard product outline drawing:
Our Advantage
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, own 27 kinds of technical patents of slip rings and rotary joints(include 26 utility model patents, 1 invention patent).
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
