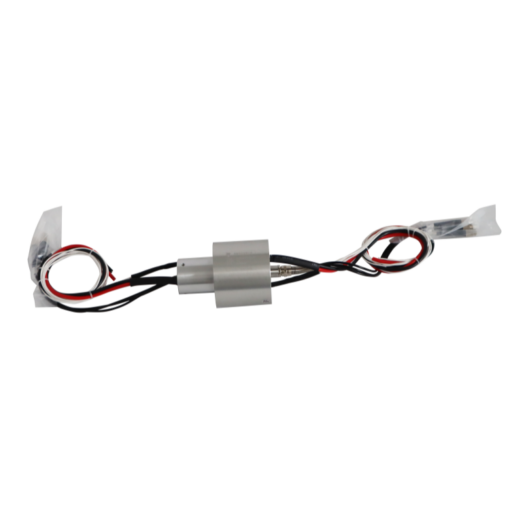

DHS082-7-3F Optoelectronic hybrid waterproof slip ring diameter 82mm 7-channel electrical combination 3-channel optical fiber

What is a waterproof slip ring?

Waterproof slip rings are specially designed for use in wet, corrosive and underwater operating environments. They are also called underwater slip rings and waterproof slip rings. The protection levels are divided into IP65, IP67, and IP68. The liquid components in the working environment, such as fresh water, sea water, oil, etc., should be considered when designing. Waterproof slip rings are widely used in water or humid environments such as ships, oil wells, port machinery and facilities, etc., and can accurately transmit signals and power.



  • Waterproof and dustproof, IP68 protection level
  • Multi-contact design, long service life
  • Anti-corrosion stainless steel shell
  • Integrated sealing structure design
  • Maximum 1-96 channels of power or signal (0-20A/ring)
  • Easy installation and maintenance-free

Typical applications

  1. Maritime surveillance ship air defense radar
  2. Coastal defense and shore-based inspection platform
  3. Artillery launcher
  4. Underwater robot
  5. Marine propeller system
  6. Marine crane
  7. Drilling platform
  8. Marine motor rotation center
  9. Marine cable drum
  10. Port machinery
