DHS119-63 automation slip rings for high rotational speed and industrial automation 63 channels
Automation Slip Rings
Slip rings with outer diameter 56mm to 119mm, transmission of power and data
Our automation slip rings can be used for more complex tasks in industrial power and signal transmission. Depending on the customer’s requirements, we offer two different qualities of automation slip rings: Standard and Industrial quality.
The automation slip rings are available in housing diameters of 56mm, 89mm and 119mm in versions with rotor and stator flange or without flange. Inside the housing, 2 to 108 rings can be processed for power and signal transmission (Ethernet, USB, RS, CANbus, video signals, sensor signals, etc.).
The housing is made of aluminium. Inside the automation slip rings we use the most advanced fibre brush technology and silver-to-silver or gold-to-gold multi-contacting. The slip rings feature low electrical noise for high data rate field bus transmission, low contact pressure and long life.
We offer standardised & modularised design and fully customisable products according to customers’ specific requirements in various applications. If you have special customised requirements, we will be happy to advise you to create the most suitable recommendation for your specification.
|
DHS0119-63 |
|||
|
The main parameters |
|||
| Number of circuits | 63 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

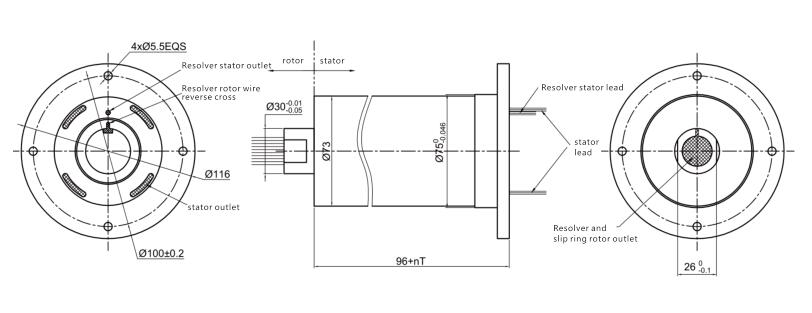

Standard product outline drawing:
Our advantage:
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
