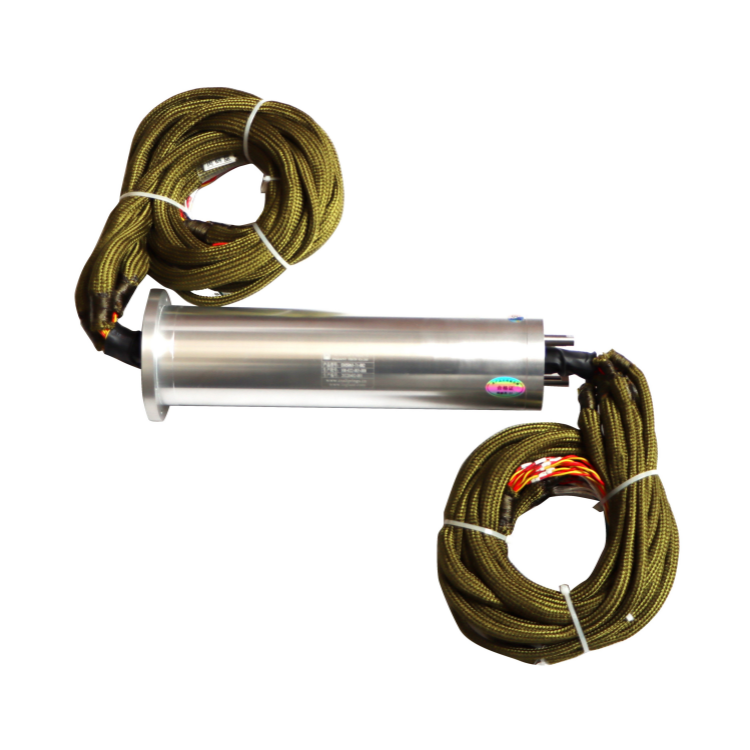

High quality industrial grade conductive automation slip ring diameter 65mm 71 channels with flange
Compact allrounder automation Slip Rings
Slip rings with outer diameter 56mm to 119mm, transmission of power and data
Advantages of Automation slip rings
The standard version of the aluminium housing is designed for protection class IP51. This means that it provides complete protection against accidental contact and lasting encapsulation against dust penetration. Depending on requirements, Automation slip rings can be manufactured with different degrees of protection. Give us a call. Together we will clarify which protection class is best suited for your Automation slip rings. Automation slip rings offer you the following advantages:
- Shielding against interfering signals
- Impact-resistant housing
- acid-resistant housing material
- Corrosion-resistant enclosure
- Minimum internal wear and tear
- Very reliable signal transmission
- Long-life ball bearings
The use of a metallic housing is ideal for shielding any interfering signals and ensuring that the signals are transmitted unaffected.
|
DHS065-71-002 |
|||
|
The main parameters |
|||
| Number of circuits | 71 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Product drawing:
Our advantage:
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
- Company advantage:Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, own 27 kinds of technical patents of slip rings and rotary joints(include 26 utility model patents, 1 invention patent).
- Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
