DHK100-6-7A 100mm through hole slip ring 6channels 7A for rotating electromechanical systems

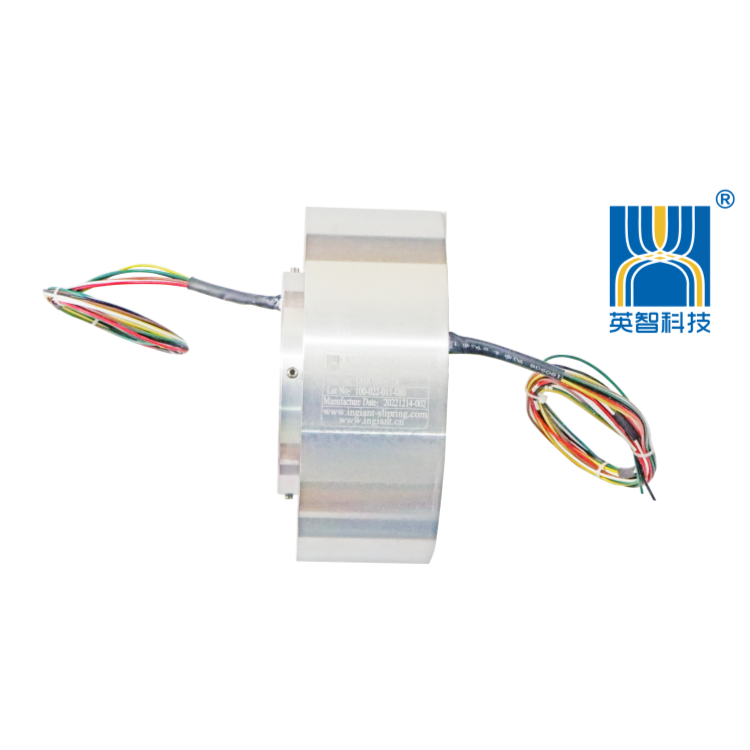

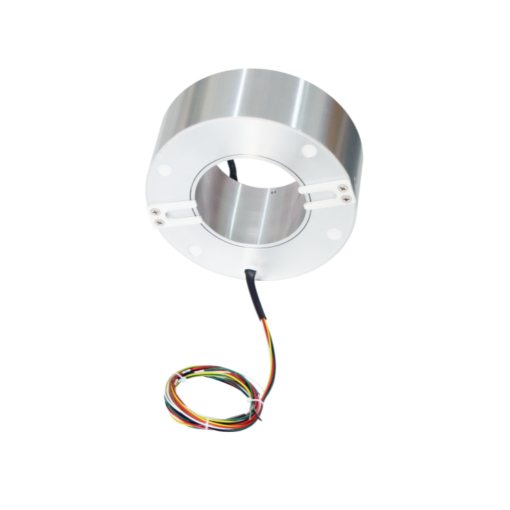

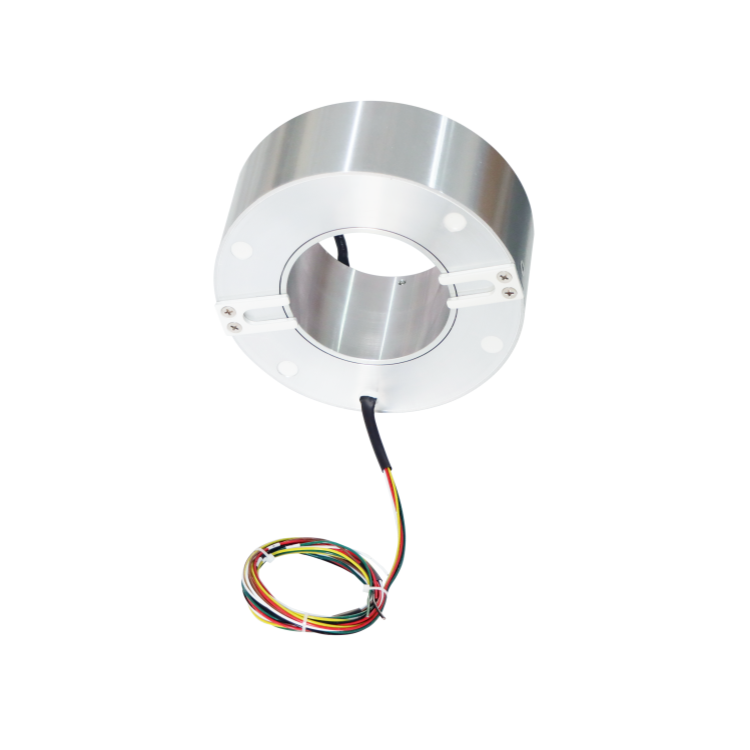

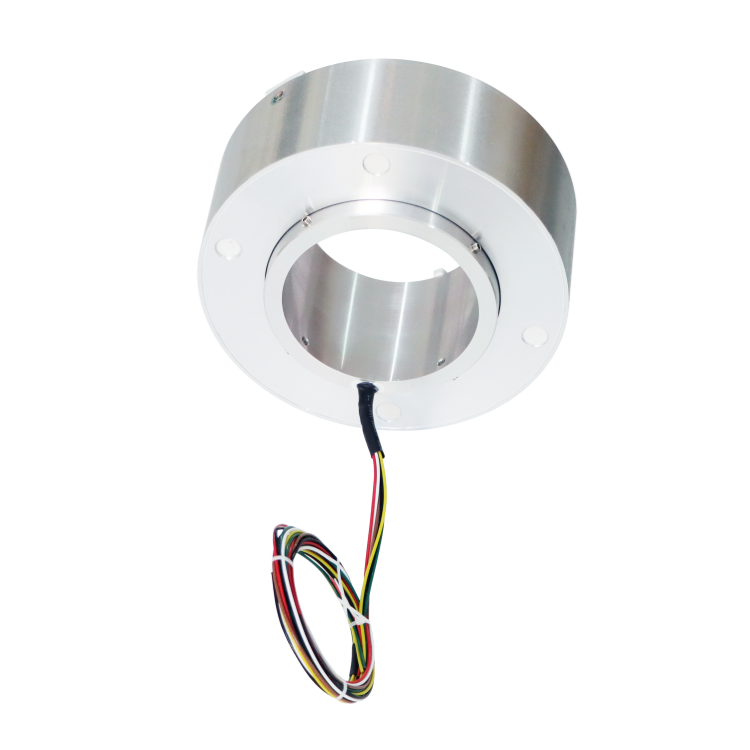

DHK100-6-7A series through hole slip ring, inner hole 100mm, outer diameter 190mm, suitable for rotating electromechanical systems with a diameter less than 100mm, power ring 7A/ring, 6 rings, used for power transmission in 360-degree rotating systems or Signal. This series of large via electric slip rings often need to be combined with other signals, such as Ethernet, etc., and are used in slip rings for large stage theater equipment, composite mechanical equipment, etc.
Features
- Multi-contact brush contact design, long service life
- Integrated structural design, easy to install
- IP 54 protection level, IP68 can be customized
- Can integrate multiple signals and be compatible with multiple data protocols
- Maintenance-free use
Typical applications
- automatic machinery
- cable tray
- Robot/Rotation Sensor
- Display/display equipment
- Packaging Machinery
- Industrial turntable
- Medical/pharmaceutical equipment
- Marking machine
- Filling machinery
- CNC machine tools
|
DHK100-6-7A |
|||
|
The main parameters |
|||
| Number of circuits | 6 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: They are only a few millimetres high and thus very space-saving along the longitudinal axis. the pancake slip rings are shielded to at least protection class IP 40, or IP51 or higher if desired. Another significant advantage of pancake slip rings is their expandability Another significant advantage of pancake slip rings is their expandability.
- Company advantage: Ingiant Technology has accumulated rich experience in developing and producing highly reliable conductive slip rings for many years, especially in large size slip rings, effectively improving product quality and yield, and saving costs for customers.
- Excellent after-sales : The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products. Provide technical information and technical training support on a regular basis.
