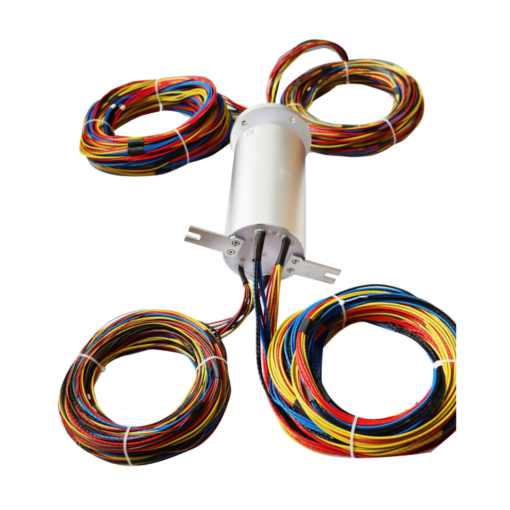

DHS120-17-002 Solid shaft capsulated slip ring diameter 120mm 17 channels with flange
The rotor part of the capsulated slip ring is equipped with a flange. The slip ring is directly connected to the customer’s flange and rotates continuously. It is mainly used in situations where continuous rotation of 360 degrees requires ensuring power supply and uninterrupted signals.
Feature:
- Solid slip ring with no through hole in the center, suitable for flange end mounting.
- Can achieve more channels and larger current.
- Internal wiring and special shielding modules are conveniently designed and more stable and reliable.
- Usually such products are used to customize various types of sensitive signals or encoder signals
Application scenarios: such as various cable reel slip rings, filling machine slip rings, molding machine slip rings, human health testing equipment slip rings, robot arms, surgical lights, shadowless lamps, special slip rings for heaters, LED advertising lights, rolls Wire reels, grinding and polishing machines, spraying equipment, cable reels, warehousing and logistics trucks, cranes, special slip rings for single crystal furnaces, sweeping robots with cameras, slip rings for roasting seeds and nuts, etc.
|
DHS120-17-002 |
|||
|
The main parameters |
|||
| Number of circuits | 17 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Product drawing:
Our advantage:
- Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
- Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
- INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warranty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
