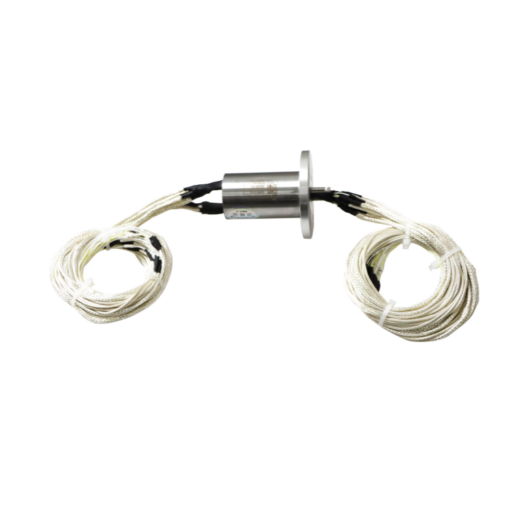

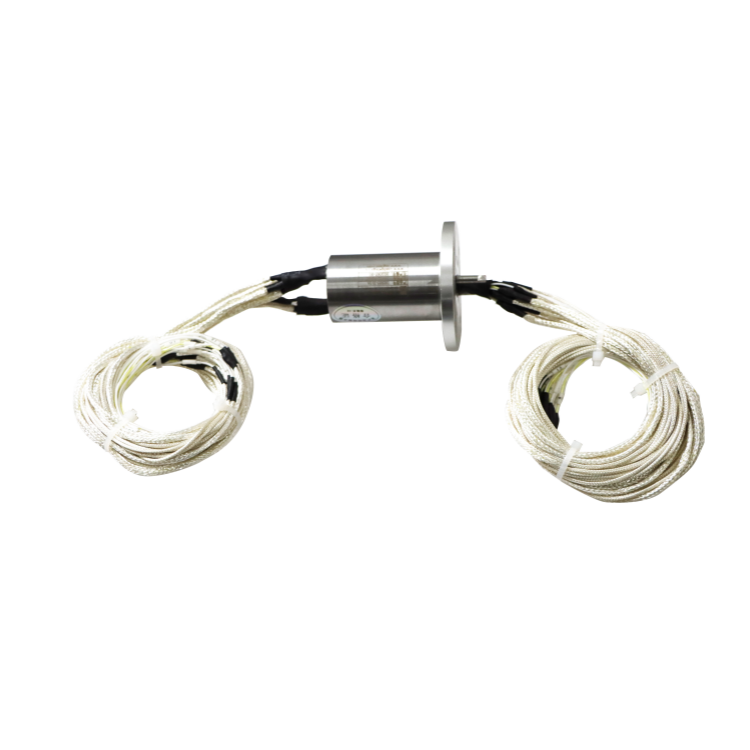

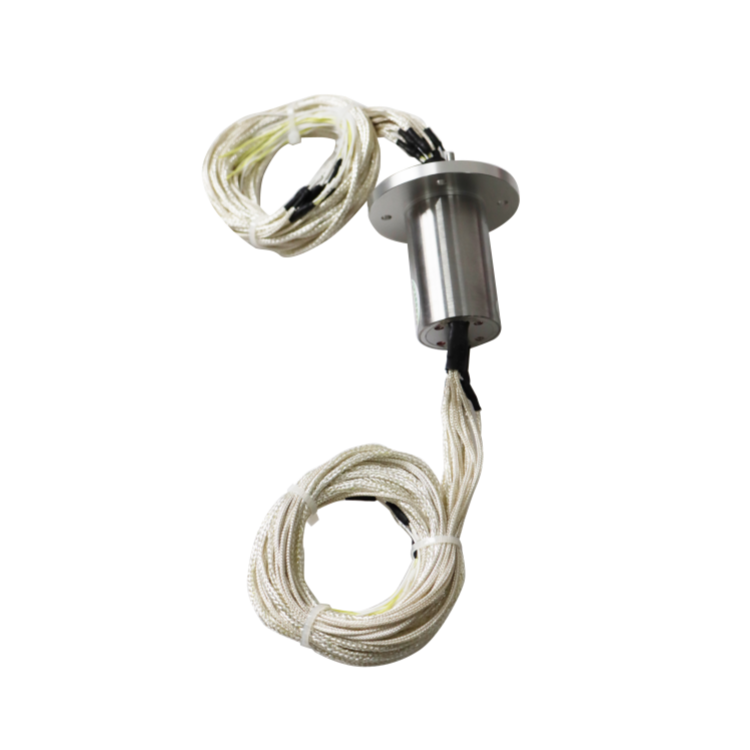

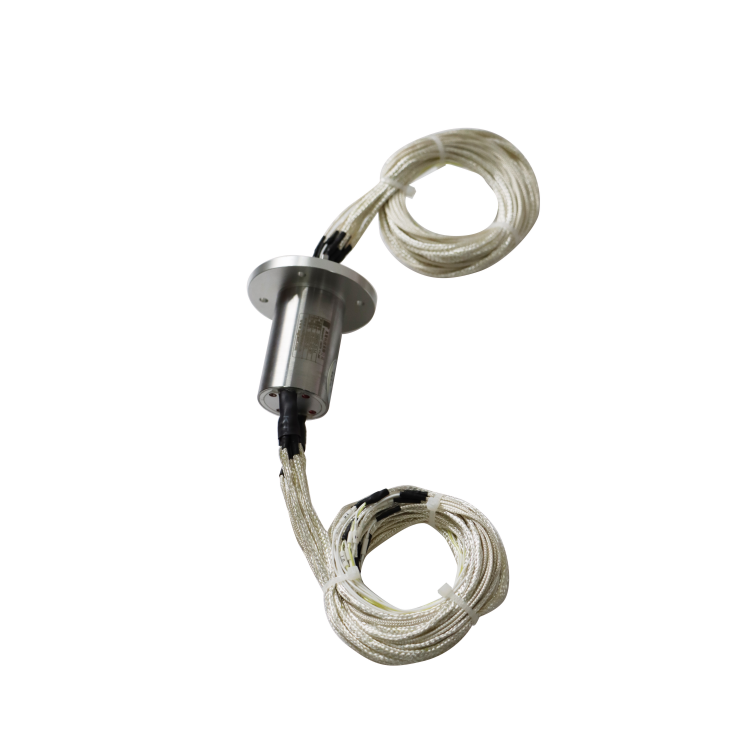

DHS035-20-3A High precision solid shaft single axis turntable slip ring 20 channels 3A

The turntable has different requirements in different uses, such as current, voltage, number of channels, communication and control signals. Usually in many applications, it is necessary to transfer liquid or gas at the same time to complete the normal operation of the hydraulic and pneumatic components on the turntable. The turntable itself cannot complete all functions, so it requires a conductive slip ring on the turntable to complete it.

Turntable slip rings refer to conductive slip rings specially designed for use on turntables. As an emerging application category of slip rings, turntable slip rings can be divided into simulation turntable slip rings and test turntable slip rings according to their use locations. In different applications, the requirements of the turntable are also different, such as current, voltage, number of channels, communication and control signals. Usually in many applications, it is necessary to transmit liquid or gas at the same time to ensure the normal operation of hydraulic and pneumatic components on the turntable. For most turntables, power, measurement signals, control and communication information need to be transmitted to the turntable.

At the same time, the rotation speed of the turntable is very high, sometimes reaching 20,000 RPM, so the most important thing is to ensure that the slip ring can achieve power, signal reliability and low attenuation at this high speed.

Category: Capsulated Slip Rings Tags: Capsulated Slip Rings, single axis turntable slip ring, solid shaft slip ring, turntable slip ring

Description

DHS035-20-3A
The main parameters
Number of circuits	20	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

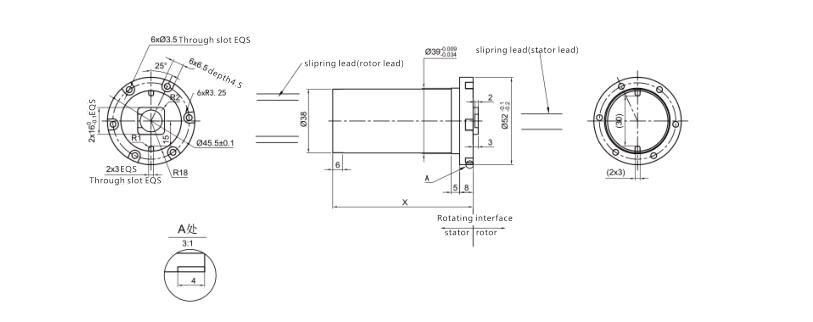

Product drawing:

Our advantage:

Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions. Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
