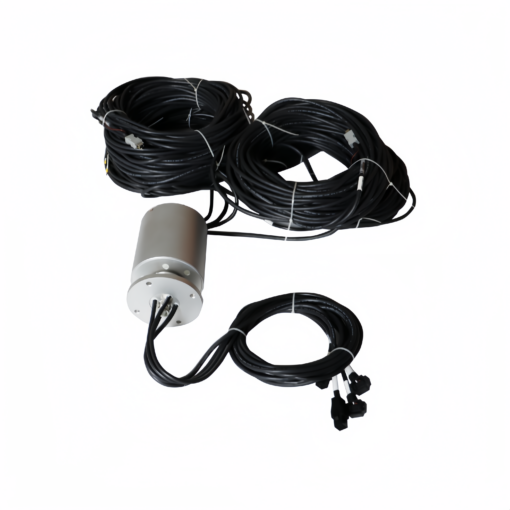

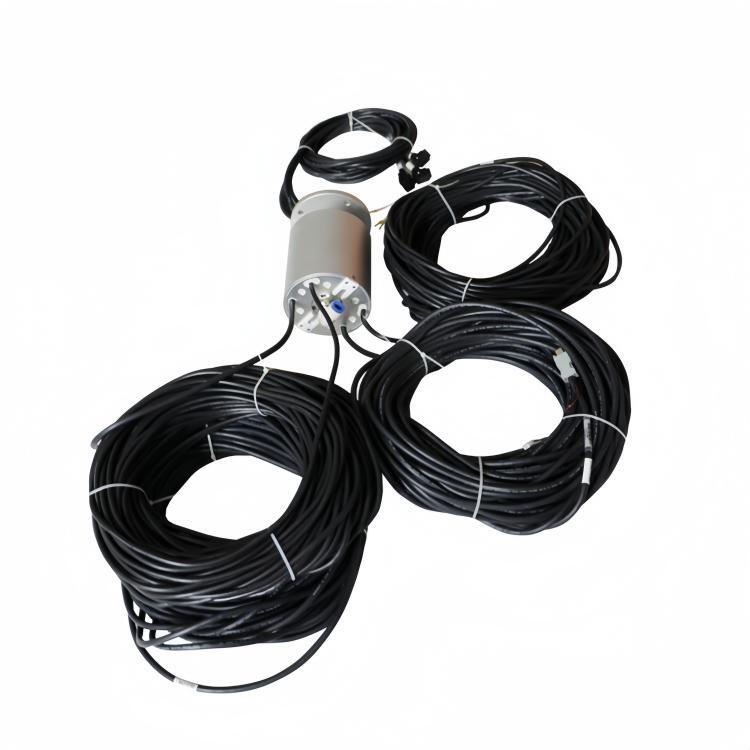

DHS120-24-1Q-002 Gas-electric hybrid slip ring transmits Ethernet signal diameter 120mm 1 channel pneumatic + power/signal
Gas-electric hybrid slip ring diameter 120mm 1 channel pneumatic + power/ Ethernet signal
Features
When rotating 360°, combined circuit (power/signal) and pneumatic transmission; Compact structure, the circuit can be Ethernet, Ethercat, profibus, profinet, canbus, deviceet and other network cables. Hybrid slip rings can be used in any electromechanical system that needs to transmit natural gas, air, electricity or data during intermittent or continuous rotation.
Typical applications
Industrial Machinery – Combined machining center machine tools, rotary indexing tables; Heavy equipment turrets, cable reels, test equipment; Packaging machines, stackers, magnetic clutches, process equipment; Rotary sensors, emergency lighting, robotics; Exhibition/display equipment , medical equipment
|
DHS120-24-1Q-002 |
|||
|
The main parameters |
|||
| Number of circuits | 24 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

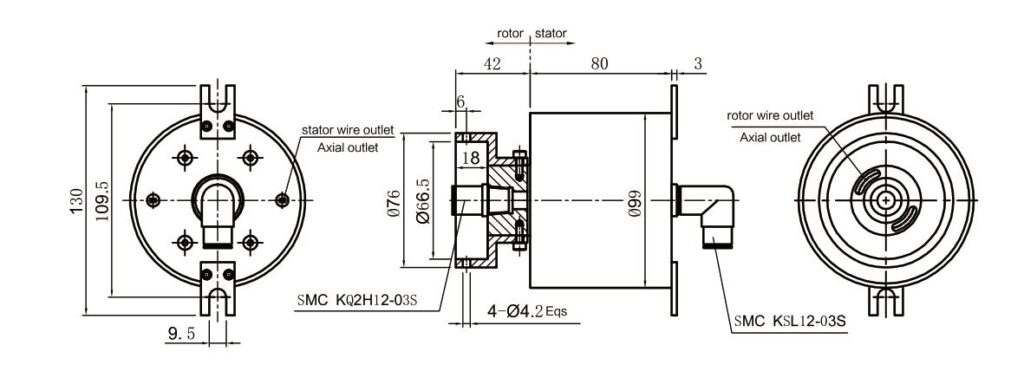

Product drawing:
