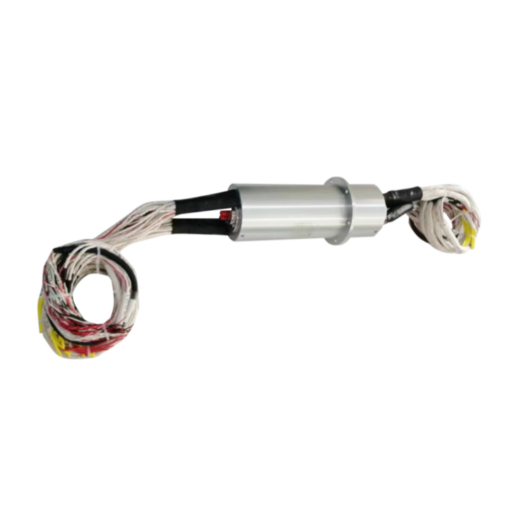

DHS080-84-2S 2 high frequency channels RF slip ring 80mm mix 84 channels of power/signal

DHS080 Series Rfslip ring RF/Coaxial/Waveguide Rotary Joint

DHS080 series RF slip rings are products specially developed to meet the transmission of high-speed serial digital signals or analog signals. The maximum transmission rate can reach 40GHz.

2-channel radio frequency rotary joint + electric combination slip ring

RF slip ring supports the independent transmission of single-channel RF signals, and can also support the mixed transmission of RF signals and 24V control signals, communication signals, power supplies, and fluid media.

The RF signal uses a 50Ω characteristic impedance RF coaxial structure head. (Other designated connectors can be transferred, and wire specifications RG178, RG316, RG174, etc. are optional)



  • Support 1,2,3,4,6,8 high frequency channels
  • Can mix 1~96 channels of power/signal
  • Perfect standing wave ratio VSWR
  • Suitable for transmission of large amounts of data without delay
  • High-speed transmission of ultra-high-definition video data

Typical applications: military radar, shipborne satellite communication devices, vehicle-mounted satellite communication equipment, satellite vehicles, emergency disaster command vehicles, high-end robots, rotating turrets on vehicles, remote control systems, radar antennas, medical systems, video surveillance systems, national security or international safety system subsea operation systems, emergency lighting equipment, robots, exhibition/display equipment, etc.;
