DHS090-64 90mm solid shaft rotor flange conductive slip ring 64channels power and signal

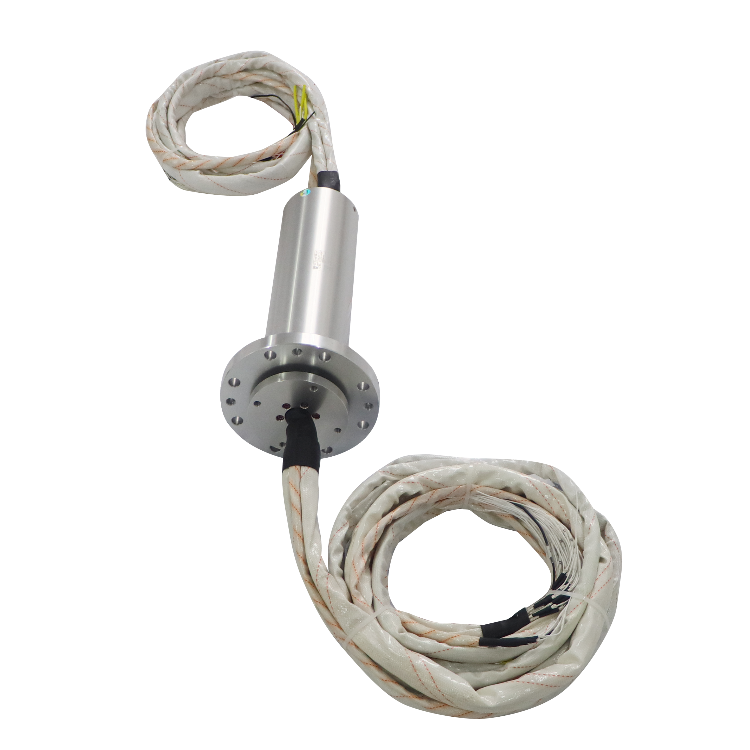

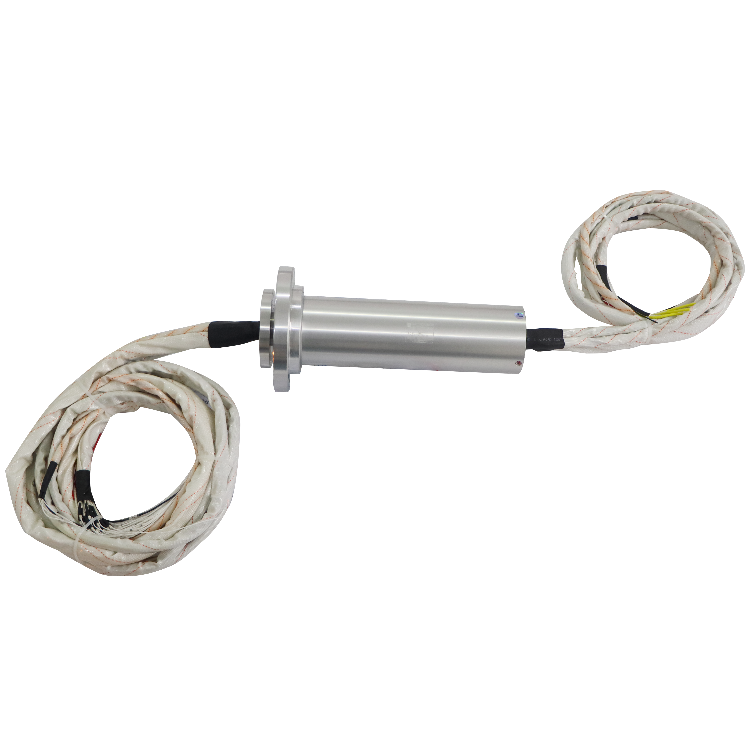

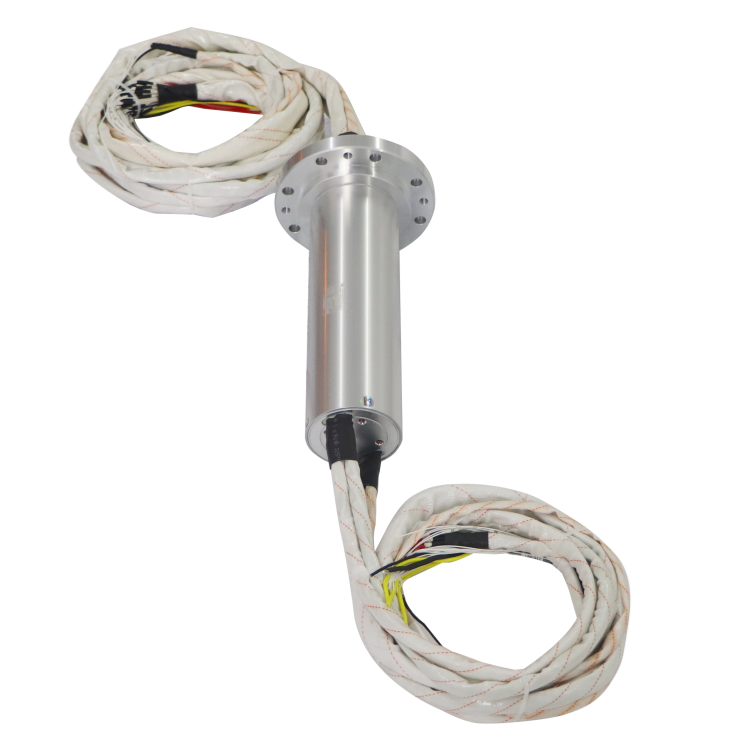

DHS090-64 series rotor flange conductive slip ring
DHS090-64 series rotor flange conductive slip rings are the general name for a series of slip rings with connecting flanges on the rotor part with an outer diameter of 90mm.
- Rotor flange slip ring, can be used in rotary tables, cable reels, and packaging equipment.
- Solid slip ring with no through hole in the center, suitable for flange end installation.
- Can achieve more channels and larger current.
- Internal wiring and special shielding modules are conveniently designed and more stable and reliable.
- Usually such products are used to customize various types of sensitive signals or encoder signals.
Typical applications:
Industrial machine machining centers, rotary tables, heavy equipment towers, cable reels, packaging equipment, magnetic clutches, process control equipment, rotation sensors, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, revolving doors, etc.;
|
DHS090-64 |
|||
|
The main parameters |
|||
| Number of circuits | 64 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

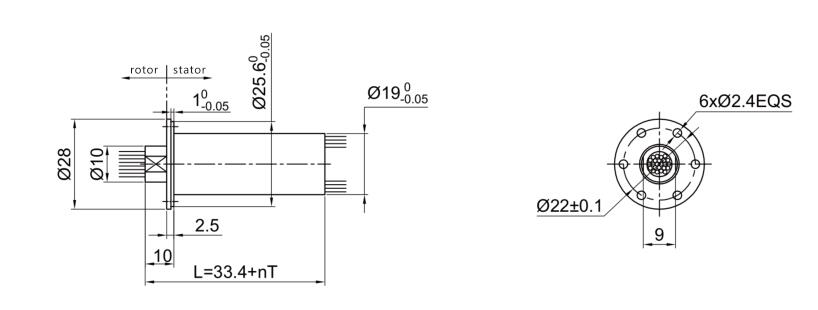

Standard product outline drawing:
Our advantage:
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
