DHS090-50-1F Ingiant Military aviation plug optoelectronic slip ring OD 90mm Single channel optoelectronic slip ring
Military aviation plug optoelectronic slip ring

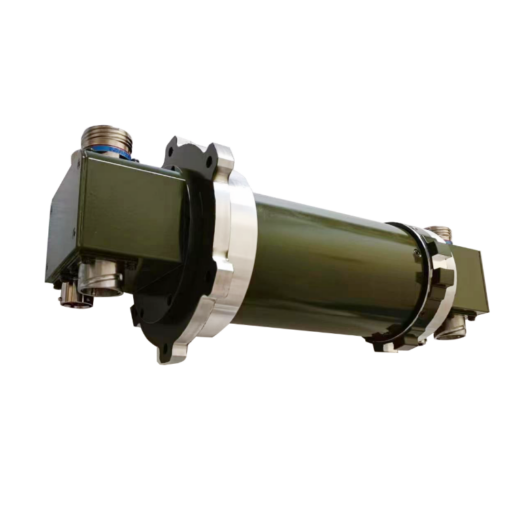

DHS090-60-1F is a optoelectronic slip ring with aviation plugs on both the rotor and stator, outer diameter 90mm, supports single mode and multi-mode.which is convenient for loading, unloading, replacement and installation, eliminating the trouble of welding wires and improving stability and reliability. It uses optical fiber as a data transmission carrier, which is suitable for harsh environments and solves the rotation transmission problem for optical series and optoelectronic systems.
Features:
Both the rotor and stator are equipped with aviation plugs.
Single channel optoelectronic slip ring
Easy to maintain and replace.
IP51-IP68 optional.
Adopting advanced precious metal cluster brush multi-point contact, reliable contact is ensured under extremely low friction.
Typical applications:
Military armored vehicle turntables, military robots, shipborne radar turntables, ship electric thrusters, missile launches, airborne radar turntables, radar guidance, airborne early warning systems, defense systems, etc.
|
DHS090-50-1F |
|||
|
The main parameters |
|||
| Number of circuits | 50 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our advantage:
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: Owns complete mechanical processing equipments including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, moreover, Ingiant owns 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), so we have a big strength on R&D and production process. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
