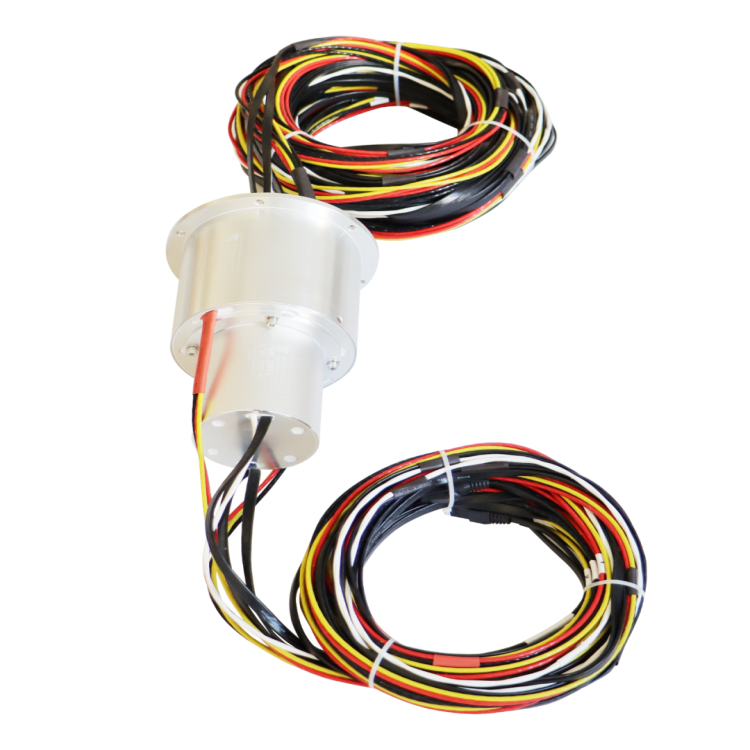

Ingiant DHS0119-6 large inner diameter slip ring 6 channels with flange
A slip ring consists of 2 main components: rings and brushes.
- The ring provides the circuit path and is made up of an electrically conductive material such as brass, plated silver or coin silver, and is usually mounted on, but insulated from, a center shaft. The insulating material between the rings and between the ring and the shaft is made of nylon, phenolic plastic or other non-conductive material.
- The brushes sit on brush arms that are attached to the side posts that ride on the ring to provide the electrical contact, connecting the rotating and stationary parts of the assembly. The brush is made up of copper graphite or silver graphite. Although typically one brush pair per ring, amperage requirements may necessitate the use of four or even more pairs per circuit.
Depending on the customer requirements, rings are stacked along the center shaft with the brushes to provide the complete slip ring assembly. The wire leads from the brushes and from the rings are connected to electrical circuits. Slip rings can be enclosed using a cover to protect them from dust, moisture, and other elements to prevent malfunction.
| DHS0119-6 | |||
| The main parameters | |||
| Number of circuits | 6 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard product outline drawing：
Our advantage:
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
