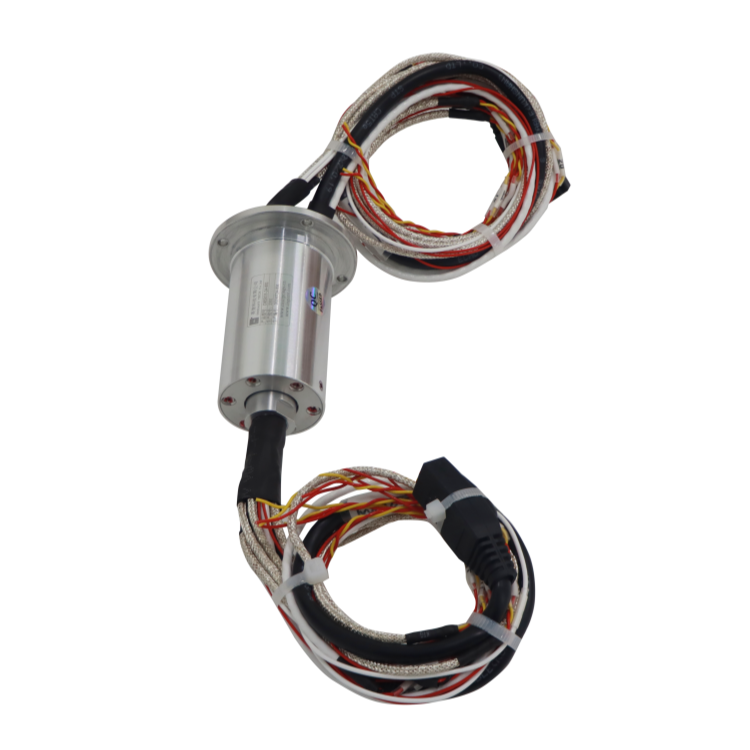

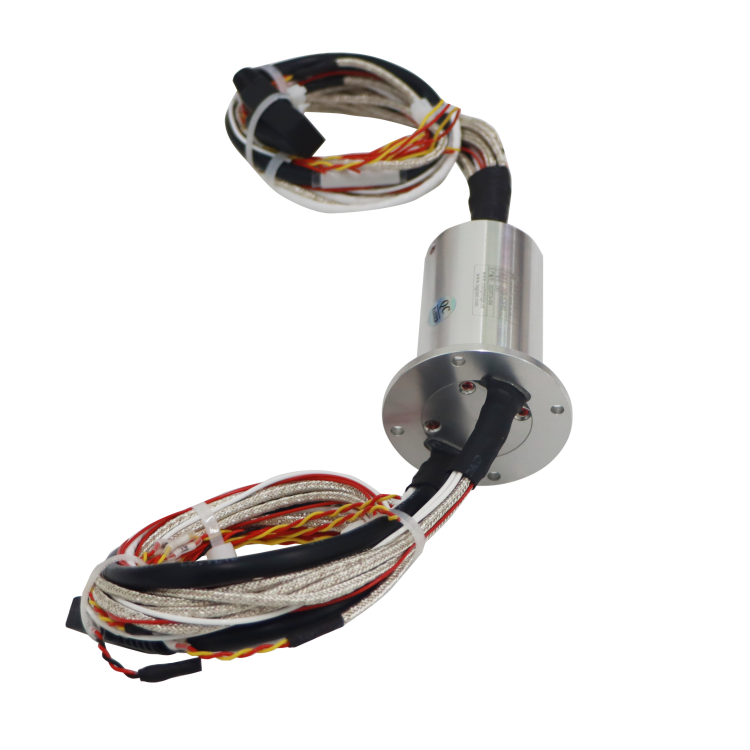

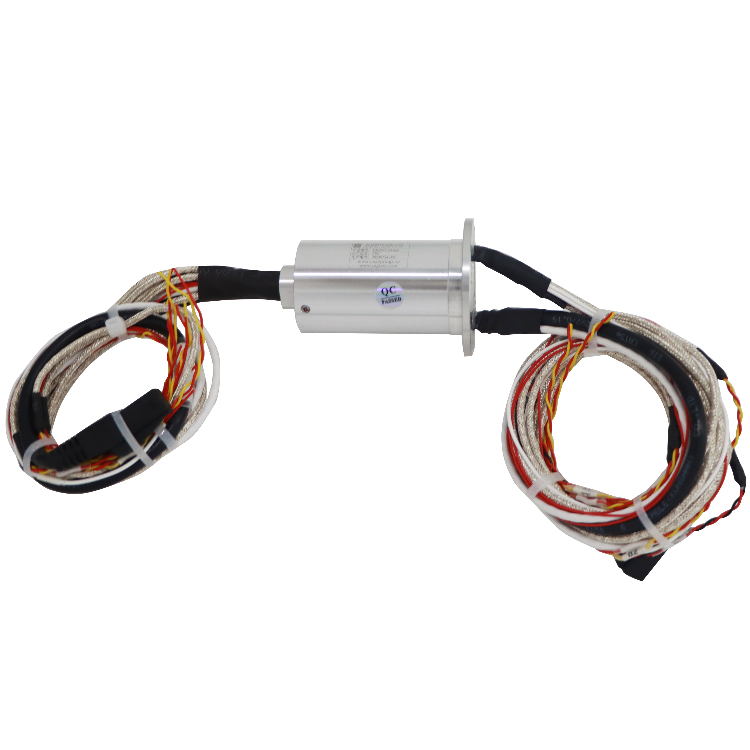

DHS035-24-002 Ingiant Customized 35mm 1-channel 100M/1000M Ethernet slip ring solid flange type

Ethernet slip ring is specially designed for 250MHz frequency signals. It is designed to transmit 100M/1000M Ethernet signals. It has stable transmission, no packet loss, no cross-coding, small return loss, small insertion loss, strong anti-interference ability, and supports POE Etc.

DHS035-24-002 series is a 1-channel Ethernet slip ring, an Ethernet conductive slip ring, a solid flange design, and a 1-channel 100M/1000M Ethernet integral precision conductive slip ring with an integral structure of an outer diameter of 35mm.

Ethernet slip rings can mix electrical power channels and signal channels
Can transmit up to 8 Ethernet channels simultaneously
Provide RJ45 connector for direct plugging and unplugging Support RJ45 connector
Military coating technology, precious metal + super hard gold plating treatment
Ultra-low BER bit error rate and ultra-high signal-to-noise ratio
Various types of Ethernet slip rings can be customized

Typical applications: rotating advertising space, radar, security equipment, entertainment equipment, various robots, manipulators, various aerostats, wind power equipment, bottle blowing machines, light inspection machines, turntables, amusement equipment, virtual 3D, VR equipment , vehicle-mounted satellite antenna, ship-mounted satellite wire, cable reel, window cleaning machine equipment, rotating dining table, rotating stage, rotating screen, rotating restaurant, electric engineering machinery, VR simulation equipment, etc.

Categories: Customized slip ring, Hybrid Slip Rings Ethernet+Electric Tag: ethernet slip ring

Description

DHS035-24-002
The main parameters
Number of circuits	24	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

Product drawing:

Our advantage:

Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions. Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
